To do color fastness to light and weather test in the color fastness test. Also available for coatings, paper, paint, paint, rubber, plastic, wood, etc.
Item No.:
D002BPayment:
TT, L/C, Wester UnionProduct origin:
ChinaShipping port:
China PortLead Time:
10-15 daysBrand:
UTSTESTERCertificates:
CE, ISO 17025Partners:
SGS, UL, etcStandards:
GB/T8427, GB/T14576 GB/T15102-2006 GB/T15104-2006 GB/T8430 AATCC TM16 ISO105-B04 ISO105-B02Overview

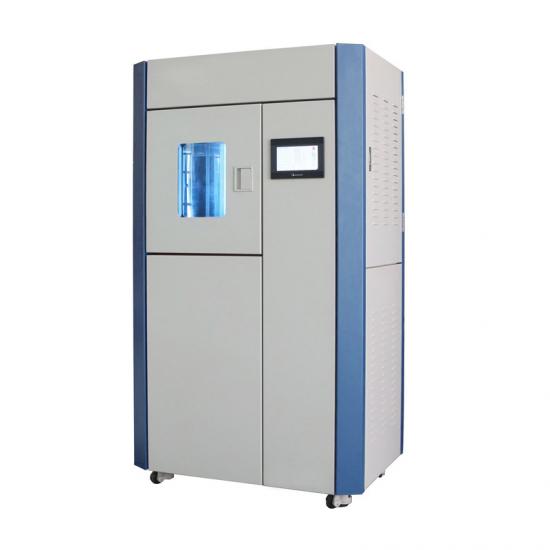

Xenon Light Fastness Tester D002B, To do color fastness to light and weather test in the color fastness test. Also available for coatings, paper, paint, paint, rubber, plastic, wood, etc.
Standards
GB/T8427, GB/T14576 GB/T15102-2006 GB/T15104-2006 GB/T8430 AATCC TM16 ISO105-B04 ISO105-B02
|
Key Specifications
Model |
D002B |
Test chamber temperature range |
25~50℃, resolution: 0.1℃ |
Test chamber humidity range |
Light cycle: 10-70%RH, humidity fluctuation: ±3%RH; |
Test time control |
0min~999:59h, accuracy: ±1min |
Irradiance control |
1-1.5W/m2/420nm, accuracy: ±0.03W/m2/420nm; Digit setting, auto compensation |
Wave length(Can be control and monitored) |
340nm, 420nm, 300-400nm, 300-800nm waveband optional |
Xenon arc lamp rated power |
3300W |
Sample holder rotation speed |
5rpm |
Maximum exposure area |
1755cm2 |
Sample holder quantity |
AATCC: 100x75mm 9×2 pcs or ISO: 135x45mm 12×2 pcs |
Each sample holder timing separately |
≤10000h |
Photoperiod |
≤10000h |
Spray period |
≤10000h |
Temperature range |
(BPT) 40-80℃, accurate ±2℃; (BST) 40-85℃, accurate ±2℃ |
Display |
10.4inch touch screen |
Test data print out |
Digital color screen display |
Internal recycle water |
High pure maximum flow: 0.5L/min |
Power |
AC380V±5% 50Hz 3.3kW |
Dimension |
920×650×1680mm |
Weight |
180kg |
Material to be Tested
Xenon Light Fastness Tester D002B, is applicable for coatings, paper, paint, rubber, plastic, wood, etc.
