Mass per unit area

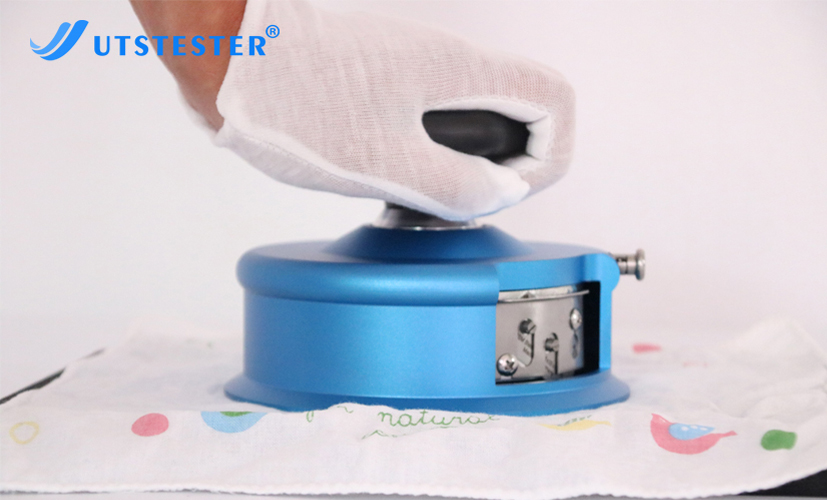

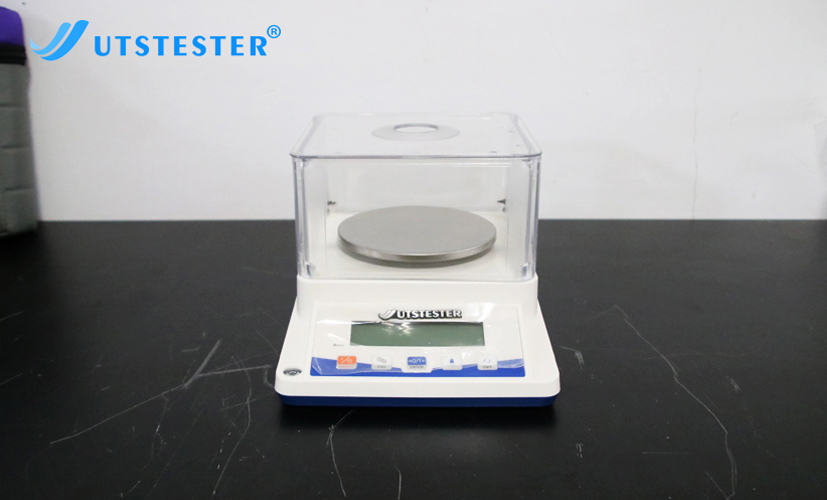

The most common method is to use a circular sampler/sample cutter to circle five circular samples with an area of 100cm2 or square samples with a side length of 10cm, and put them on a balance to weigh its weight.

Finally, it is converted to mass per unit area (g/m2).

The sample is dried in a drying oven(D010A Drying Oven) at 105℃ to a constant weight and then weighed to get the drying mass. The common mass per unit area can be calculated by combining the common moisture regain rate of the fiber.

Mass per unit length

The edges of the fabric should be cut vertically and parallel, and the length of the whole fabric should be at least 0.5m. After weighing, it should be converted to (g/m).

g/m= g/m²×breadth(m)

Individual quality

For the complete finished product, according to customer requirements can weigh the quality of a single piece, such as towels, blankets, sweaters, etc.

Unit conversion

In addition to the square metre gram weight (g/m2), the commonly used unit of jeans is oz/yd²

Ounces/yards = square meters of gram weight ×1/33.91

For example: 10oz/yd²=339.1g/m²

Reference standards

GB/T 4669-2008 "mass per unit length and mass per unit area of woven fabrics"

FZ/T 70010-2006 "knitted fabrics - Determination of dry weight in square meters"

FZ/T 20008-2006 "Determination of mass per unit area of wool fabrics"
