Drying oven/Incubator D010A

D010A Incubator / drying oven is used to dry, bake and preheat various materials or specimen by hot air circulation method to uniform the temperature distribution. Provided for desiccation, torrefaction, wax-melting and sterilization in mining enterprises, laboratories and scientific research institutes.

  • Item No.:

    D010A
  • Payment:

    TT, L/C
  • Product origin:

    China
  • Shipping port:

    China Port
  • Lead Time:

    7-15 Days
  • Brand:

    UTSTESTER
  • Certificates:

    CE, ISO 17025

New Products

Call Us Now

+86 15260605085

  • Product details

D010A Drying oven/Incubator


Overview

D010A Incubator / drying oven is used to dry, bake and preheat various materials or specimen by hot air circulation method to uniform the temperature distribution. Provided for desiccation, torrefaction, wax-melting and sterilization in mining enterprises, laboratories and scientific research institutes.


Feature

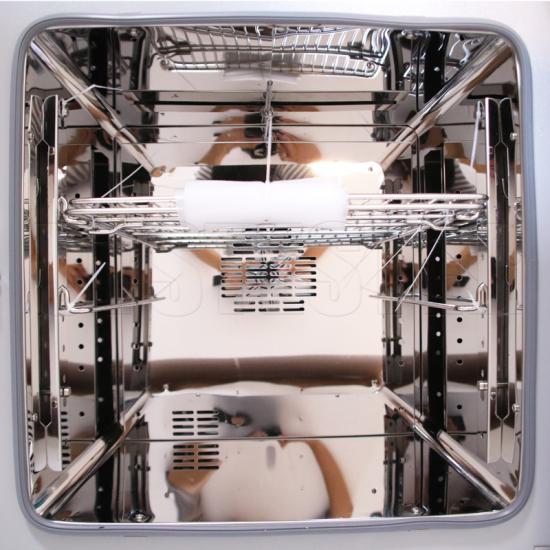

1, Polished stainless-steel chamber.

2, Inner box has arc interior angle. There are double layers of reinforced glass viewing window.

3, There is heat-resistant silicon rubber sealing strips and has good effect of heat preservation.

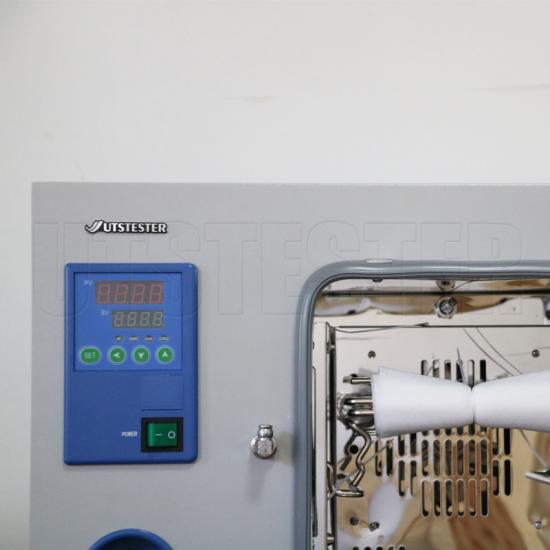

4, This series of products adopt intelligent temperature PID controller, and there is heat-resistant fan for cross-ventilation.


Standards

Resistance to Perspiration: GB/ T 3922, AATCC 15, ISO105

Resistance to Sea Water:  GB/ T5714, AATCC107, ISO105

Resistance to Water:     GB/ T5713, AATCC106, ISO105

Assessment of migration of textile colours into polyvinyl chloride coatings:  ISO105 X10


Optional Models

Model

D010A-30L

D010A-50L

D010A-80L

D010A-136L

D010A-220L

D010A-420L

D010A-620L

Input power

850W

1100W

1550W

2050W

2450W

3100W

4000W

Volume

30L

50L

80L

136L

220L

420L

620L

Inner size

( W*D*H)

(mm)

340×320×320

420×395×350

450×400×450

550×450×550

600×500×750

640×585×1355

840×600×1355

Outside size

( W*D*H)

(mm)

620×440×490

720×530×520

740×530×630

840×580×730

880×630×930

780×750×1880

980×800×1880

Shelf

2 pcs

3pcs

4pcs




Key Parameters

Power supply

AC  220V    50HZ

Temp.

RT+10~300℃

Temperature Fluctuation

±1.0℃

Temperature resolution

0.1℃

Temperature uniformity

±3% (Test point is 100℃)

Working temp.

+5~40℃

Heating rate

2-3 °C per minutes

Cooling rate

Natural cooling


Materials To Be Tested

D010A Drying oven/Incubator is applicable for drying various materials or specimen.
