Color Matching Cabinets D008

Color light box/Color matching cabinet, to do color matching or assessment for all industries and applications where there is a need to maintain color consistency and quality. Such as, Dyeing, Packaging, Printing, Footwear, Inks and Textile, Automotive, Ceramics, Cosmetics, Foodstuffs, Furniture, knitwear, Leather, Ophthalmic,etc.

  • Item No.:

    D008

  • Payment:

    TT, L/C

  • Product origin:

    China

  • Shipping port:

    China Port

  • Lead Time:

    4-7 Days

  • Brand:

    UTSTESTER

  • Certificates:

    CE, ISO 17025

Product categories

New Products

Call Us Now

+86 15260605085

  • Product details

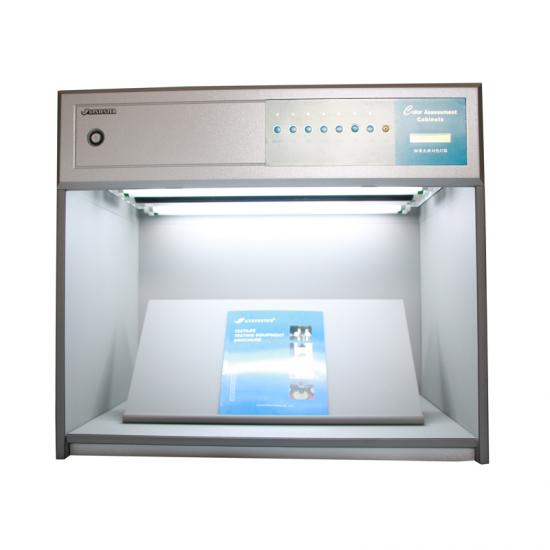

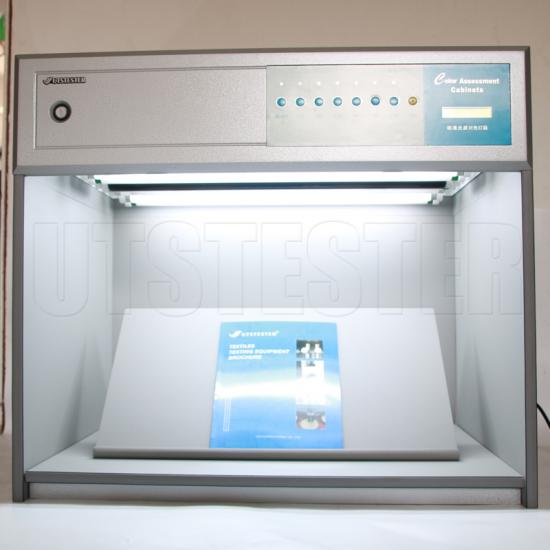

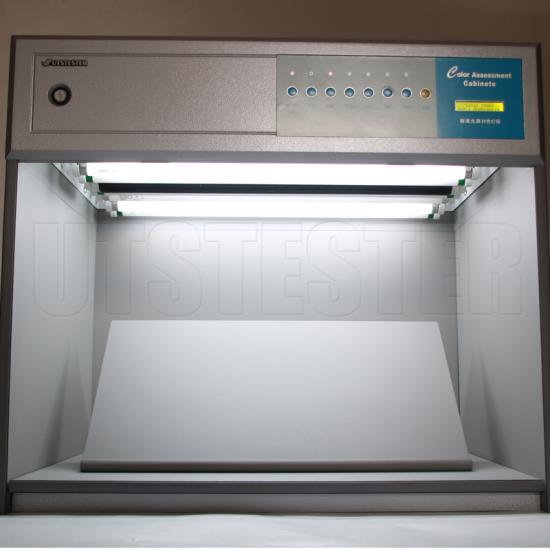

D008 Color Matching Light Box


Overview

Color light box/Color matching cabinet, to do color matching or assessment for all industries and applications where there is a need to maintain color consistency and quality. Such as, Dyeing, Packaging, Printing, Footwear, Inks and Textile, Automotive, Ceramics, Cosmetics, Foodstuffs, Furniture, knitwear, Leather, Ophthalmic,etc.
D65, TL84, CWF, F, UV, U30 light sources are available for this light box.

Features

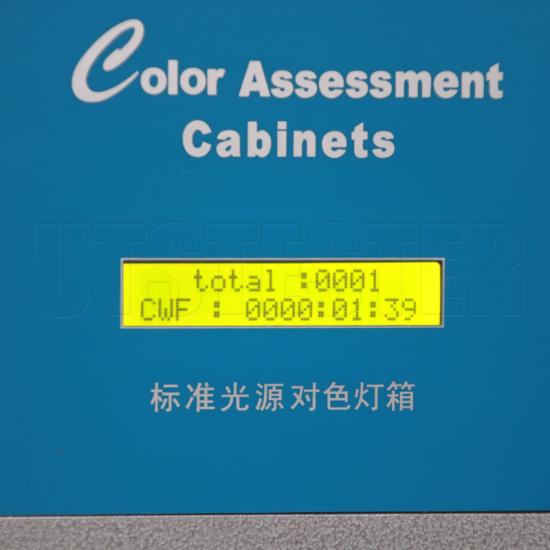

Display using time, name and on-off times for each light resources.

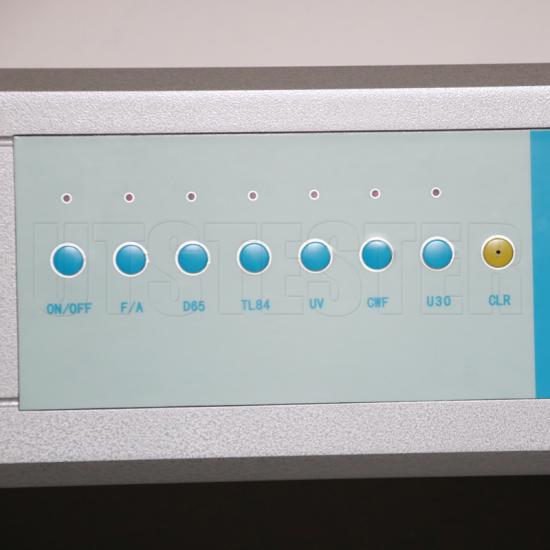

Light resources can be switched, with metamerism function.

No need to preheat and no flashing to ensure fast and reliable color assessment reference.

More complete EN/ASTM standard commonly used light source.

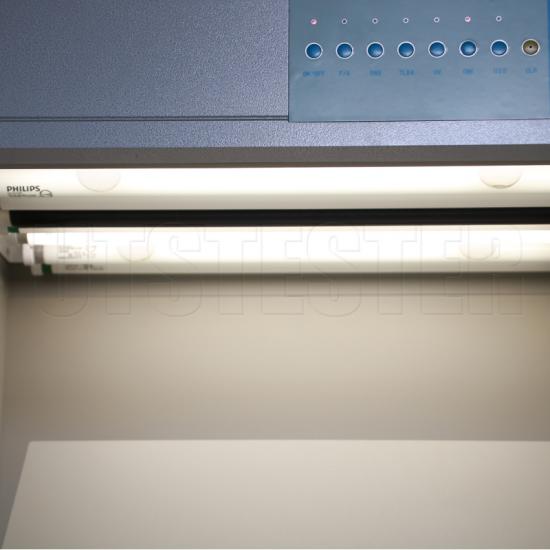

Light Tube Model

Light

Details

Quantity

Power

Color Temperature

D65

International standard Artificial Daylight

2pcs

18W

6500K

A

American kitchen window lamp, colorimetric reference lamp.

2pcs

100W

2856K

TL84

The light source of the special store in the Europe (Marks & Spencer).

2pcs

18W

4000K

F

Family hotel use light, color reference light source.

2pcs

40W

2700K

UV

Ultra Violet light source

1pc

18W

wavelength 365nm

U30

Warm White store light source (Warm White)

2pcs

18W

3000K

CWF

Cool White Fluorescent

2pcs

18W

4200K

Optional Model

Models

Configured light sources

Weight

Dimensions( L x W x H)

D008(4)

D65. TL84. F/A . UV

28kg

710 x 420 x 570mm

D008(5)

D65. TL84. CWF. F/A . UV

32kg

710 x 420 x 570mm

D008(6)

D65. TL84. CWF. F/A . UV. U30

35kg

710 x 620 x 625mm

D008(7)

D65. TL84. CWF. F . UV. U30. A

35kg

710 x 620 x 625mm

D008(1200)

D65. TL84. CWF. F/A . UV. U30

65kg

1310 x 620 x 800mm


Matrials To Be Tested

D008 Color checking light box is applicable for all industries and applications where there is a need to maintain color consistency and quality.



Hot Tags : color matching cabinet price verivide color matching cabinet color matching cabinets Color Matching Light Box color viewing light box
