Y006B Sample Yarn Winder

Sample yarn winder is used to reel various kinds of yarn(Cotton, chemical fiber and various blended yarn) onto a black board. Then according to cloud observation to quick assess yarn quality.

  • Item No.:

    Y006B
  • Payment:

    TT, L/C
  • Product origin:

    China
  • Shipping port:

    China Port
  • Lead Time:

    7-10 Days
  • Brand:

    UTSTESTER
  • Certificates:

    CE, ISO 17025
  • Standards:

    GB/T 9996 GB 403 ASTM D 2255

New Products

Call Us Now

+86 15260605085

  • Product details

Y006B Sample Yarn Winder


Demonstration Video


Overview

Sample yarn winder is used to reel various kinds of yarn(Cotton, chemical fiber and various blended yarn) onto a black board. Then according to cloud observation to quick assess yarn quality.


Standards

GB/T 9996  GB 403  ASTM D 2255



Key Specifications

Model

Y006B

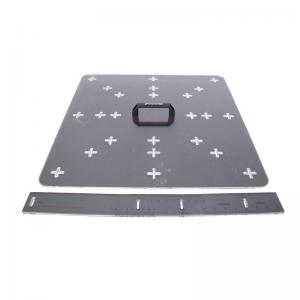

Black board

575 x 250 x 160 x 3mm

Tension method

Stepwise loading method

Reeling density

7, 9, 11, 13, 15, 19pieces/cm

or 20pieces /4.5cm the density has seven gears

Yarn frame speed

0-350r/min step-less

Power

50W

Dimensions (LxWxH)

1065 x 450 x 270mm (LxWxH)

Weight

26.5Kg


Material to be Tested

Y006B Sample Yarn Winder is applicable for various kinds of yarn(Cotton, chemical fiber and various blended yarn)
