Washing Colorfastness Tester D007C

To determine the washing and dry colorfastness resistance property for dyed textile or dyed yarn after washing.

  • Item No.:

    D007C

  • Payment:

    TT, L/C, Wester Union

  • Product origin:

    MADE IN CHINA

  • Shipping port:

    Any Port of China

  • Lead Time:

    15-20 Days

  • Brand:

    UTSTESTER

  • Certificates:

    CE, ISO 17025 Calibration Certificate

  • Standards:

    JIS L 0860, JIS L 0844, AATCC 61

Product categories

New Products

Call Us Now

+86 15260605085

  • Product details

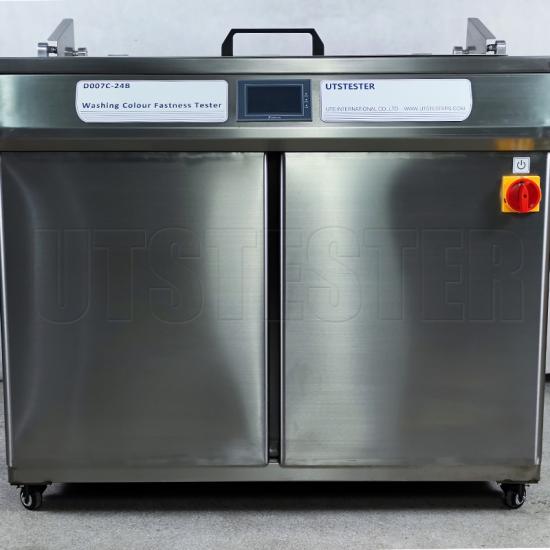

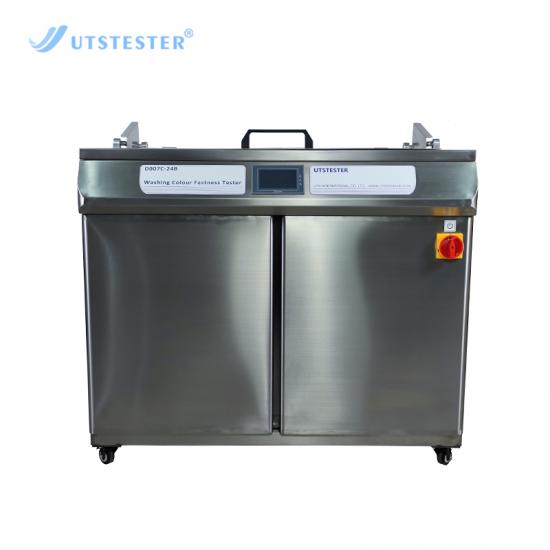

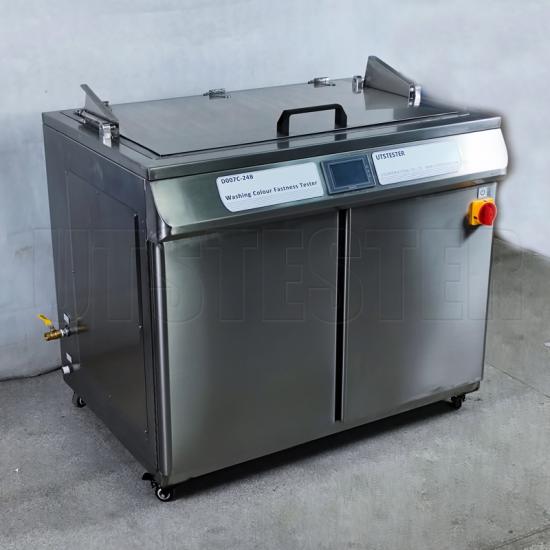

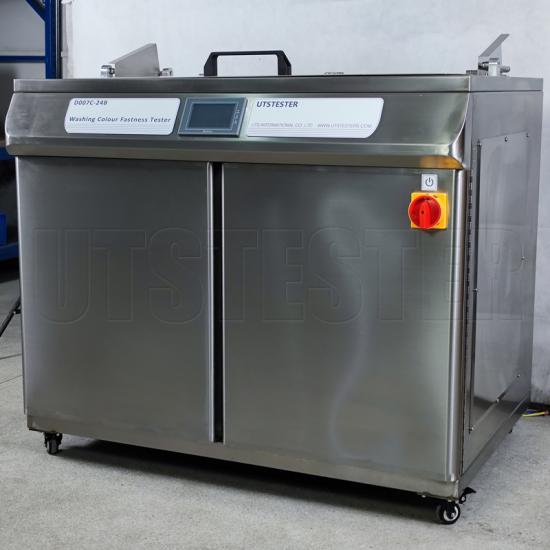

D007C Washing Colorfastness Tester


Overview

It can be used to test the color fastness of all kinds of textiles to washing, dry cleaning and shrinkage, and also to test the color fastness of dyes to washing.


Standards

ISO105-C01, C02, C03, C04, C05, C06, C08, C09, C10, D01, E03, E12; AATCC 3, 61, 62, 86, 132, 151, 190; JIS L0860, JIS L0844, JIS L0879; M&S C4A, C5, C37, P3B; BS 1006 NEXT 2,3,5; IWSTM 7,115,177,193, 240, 241; FTMS 191 Method 5610/5622; GB/T 5711, GB/T3921-1 to 5, GB/T12490 ;


Key Specifications

Model

D007C-8A

D007C-8B

D007C-8AB

D007C-12A

D007C-12B

D007C-12AB

Working position

8

12

Model

D007C-20A

D007C-20B

D007C-20AB

D007C-24A

D007C-24B

D007C-24AB

Working position

20

24

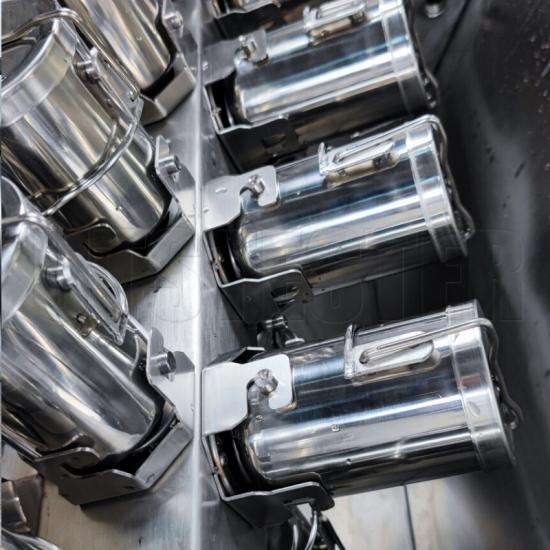

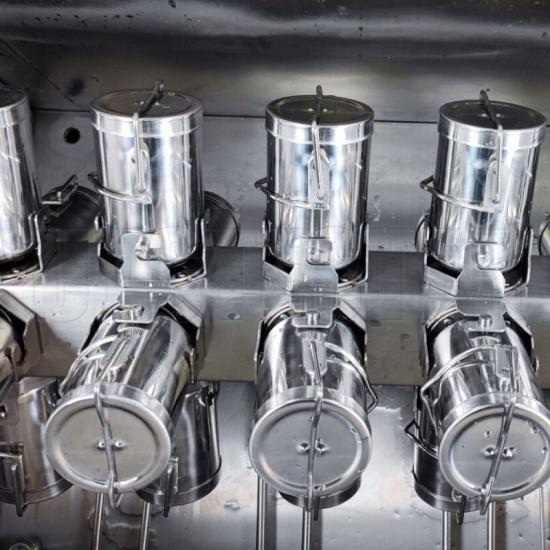

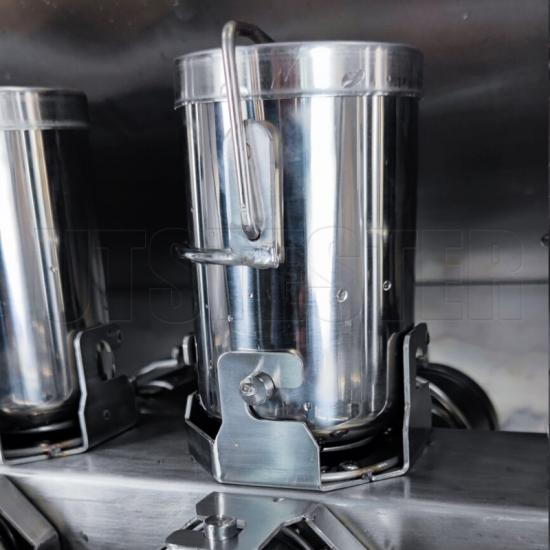

Washing cups

A(AATCC cup volume): 1200±50ml

B(ISO cup volume): 550±50ml

Display

Touch screen

Test speed

40±2 r/min

Steel ball

Diameter 6mm, SUS 304

Steel disc

Diameter 32mm, thickness 3.2mm, weight 20±3g, SUS 304

Sample size

40mmx100mm

Counting

0~999min

Distance between bottom of beaker and center of axis

40±5mm

Temperature

Room temp. To 95 ℃, settable

Heating methods

Electrical heating tube


Test Principle

Cut the specified size of sample and sew with multi fiber cloth, then put into the washing beakers with washing liquor of predetermined temperature and steel balls. After rotary wash for preset time, take out the multifiber and after dry it, compare and assess its colorfastness grade against Gray scale for assessing staining.



Features

  • Machie body in SUS 304 stainless steel material, beakers in SUS 316 stainless steel material
  • Easy open door
  • Quick-lock retention bars
  • Device will alarm once test finished.
  • Door safety switch stops rotor if opened
  • Large 24 container capacity and also available for customized.
  • 550 ml and 1200 ml beakers in stainless steel material are optional.
  • Suport programe procedure


Dimension & Weight

Model

D007C-8

D007C-12

D007C-20

D007C-24

Dimension

64 x 75 x 100cm

76 x 75 x 100cm

100 x 75 x 100cm

115 x 75 x 104cm

Weight

95kg

115kg

150kg

175kg


Material to be Tested

M112 Light Blocking Effect Tester is applicable for all types of fabrics, including coated Textiles and other textile-based constructions.
