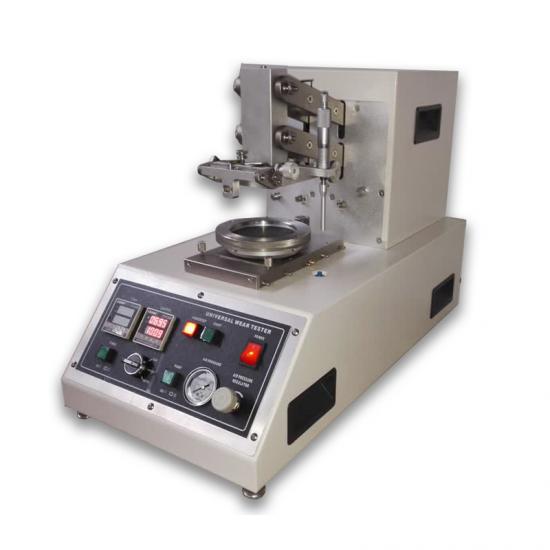

Universal Wear Tester (Stoll Quartermaster) M013

Universal Wear Tester (Stoll Quartermaster) M013 for measuring resistance to laboratory wear and abrasion of such materials as woven and knitted fabrics, footwear, napped and pile fabrics, hosiery, felt, non-woven and coated fabrics, yarns, threads and cordage, plastic films, rubber sheeting, leather, paper and, many other materials.

  • Item No.:

    M013
  • Payment:

    TT, L/C, Wester Union
  • Product origin:

    China
  • Shipping port:

    China Port
  • Lead Time:

    3-25 Days
  • Brand:

    UTSTESTER
  • Certificates:

    CE, ISO 17025, ISO 9001
  • Standards:

    ASTM D3514, D3885, D3886 AATCC 119, 120 JIS L1096
  • Product details

Overview

Universal Wear Tester (Stoll Quartermaster) M013, is a multipurpose Instrument for measuring resistance to laboratory wear and abrasion of such materials as woven and knitted fabrics, footwear, napped and pile fabrics, hosiery, felt, non-woven and coated fabrics, yarns, threads and cordage, plastic films, rubber sheeting, leather, paper and, many other materials.

It is a self-contained instrument which gives direct evaluation of quantitative parameters for resistance to surface abrasion; edge, fold and projection abrasion; roll and fold testing; flex abrasion. Automatic end points which can be provided for all test procedures secure definite results.



Standards

ASTM D3514, D3885, D3886

AATCC 119, 120

JIS L1096



Test Principle

Universal Wear Tester (Stoll Quartermaster) M013: Mount sample and abrasion material on the fixture of machine, add specified load and test sample at specified stoke and speed. Inspect abrasion condition after testing a certain of times, or test the times of sample rubbing off to assess sample abrasion resistance property and surface pilling situation, so as to provide reference for improving fabric craft.

Install sample on fixture of instrument with adding a certain of load, and under predetermined stroke and speed, use standard abrasion materials(such as wire mesh, carborundum, etc) to rub sample at specified times so as to check its color changing situation.



Key Specifications

Model

M013

Testing stroke

1in(25.4mm)

Testing speed

120r/min

Loading weight

0.5Lb(2pcs),1Lb(2pcs),2Lb(1pc)

Tension weight

0.5Lb(2pcs),1Lb(2pcs),2Lb(1pc)

Bottom fixture rotary speed

Approx, 100 times / cycle

Counter

0-999,999 times, adjustable

Timing

0~9 999min

Dimensions

34 x 66 x 47cm ( L x W x H )

Weight

80kg

Power supply

1 AC 220V 5A



Material to be Tested

Universal Wear Tester (Stoll Quartermaster) M013, is applicable for woven and knitted fabrics, footwear, napped and pile fabrics, hosiery, felt, non-woven and coated fabrics, yarns, threads and cordage, plastic films, rubber sheeting, leather, paper and, many other materials

Universal Wear Tester (Stoll Quartermaster) M013
