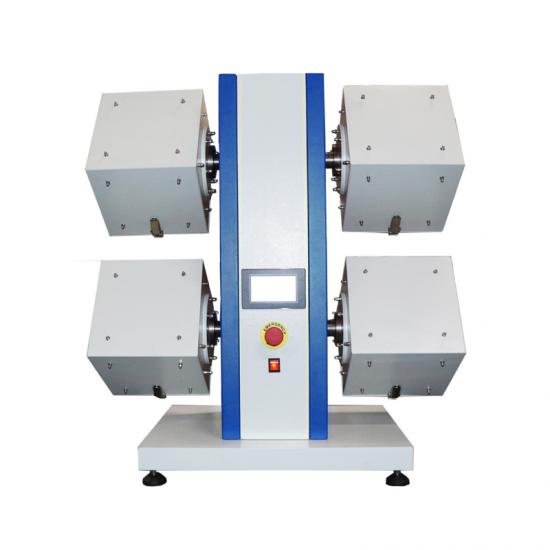

ICI Pilling and Snagging Tester M010B

Used to assess surface pilling degree for fabrics particularly wool knitted fabric.

The color touchscreen controller has all the standard tests preloaded so tests can be started with just a couple of touches. Magnetic backed cork liners make cork changes easy without the need tow remove the box from the drive.


  • Item No.:

    M010B
  • Payment:

    TT, L/C, Wester Union
  • Product origin:

    China
  • Shipping port:

    China Port
  • Lead Time:

    10-15 days
  • Brand:

    UTSTESTER
  • Certificates:

    CE, ISO 17025
  • Partners:

    SGS, UL, etc
  • Standards:

    GB/T4802.3, ISO 12945.1, BS5811, JIS L1076, IWS TM152
  • Product details

Overview

M010 ICI Pilling Tester is used to assess surface pilling degree for fabrics particularly wool knitted fabric.
The color touchscreen controller has all the standard tests preloaded so tests can be started with just a couple of touches. Magnetic backed cork liners make cork changes easy without the need tow remove the box from the drive.


Standards

GB/T 4802.3, ISO 12945.1, BS 5811, JIS L1076, IWS TM152



Key Specifications

Model

M010A

M010B

M010C

Pilling boxes quantity

2 Boxes

4 Boxes

9 Boxes

Interior box size

235×235×235mm

Rotational speed

30-70 rpm, adjustable

Rotational direction

Positive and negative rotation, optional

Counter range

1-99999 times

Polyurethane sample tubes

External: Φ31.5×140 mm

4 Pieces per box

Power supply

AC 220V 50/60HZ 120W

Dimensions (L x W x H)

1200x 500x 500 mm

1200x 500x 800mm

1400x500x1600mm

Weight

40kg

60kg

180kg


Material to be Tested

M010 ICI Pilling Tester, is applicable for testing fabrics particularly wool knitted fabric.

M010 ICI Pilling Tester
