Full Automatic Fabric Stiffness Tester M038A

M038A Full Automatic Stiffness Tester is to test stiffness property for fabrics including cotton, wool, silk, linen, chemical fiber, knitted fabrics, non-woven fabric, coating fabric, etc. As well as for such soft materials as paper, leather, thin film, etc.

  • Item No.:

    M038A
  • Payment:

    TT, L/C
  • Product origin:

    China
  • Color:

    Blue
  • Shipping port:

    China Port
  • Lead Time:

    10-25 Days
  • Brand:

    UTSTESTER
  • Certificates:

    CE, ISO 17025, ISO 9001
  • Standards:

    ASTM D 1388, IS09073-7, BS EN 22313, ZB WO4003, GB/T18318, BS 3356

New Products

Call Us Now

+86 15260605085

  • Product details

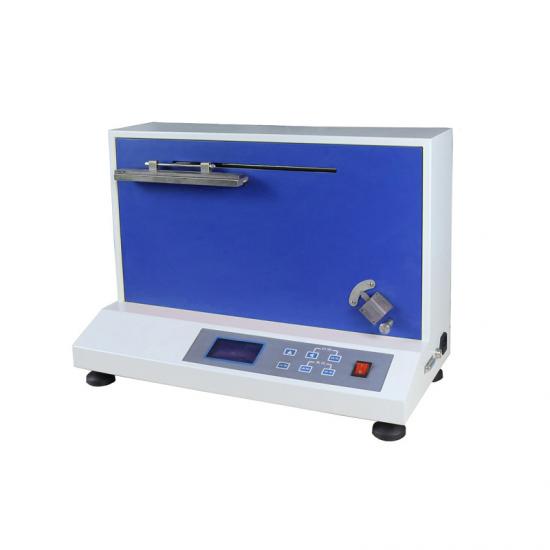

M038A Full-Automatic Fabric Stiffness Tester


Demonstration Video



Application

M038A Full Auto Fabric Stiffness Tester, To test stiffness property for fabrics including cotton, wool, silk, linen, chemical fiber, knitted fabrics, non-woven fabric, coating fabric, etc. As well as for such soft materials as paper, leather, thin film, etc.


Standards

ASTM D 1388, IS09073-7, BS EN 22313,

ZB WO4003, GB/T18318, BS 3356


Features

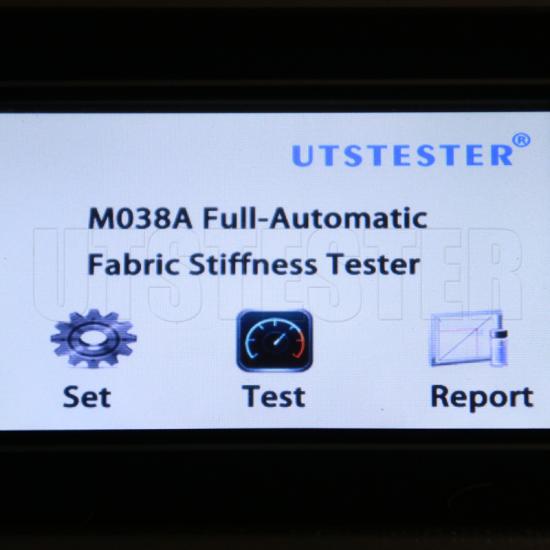

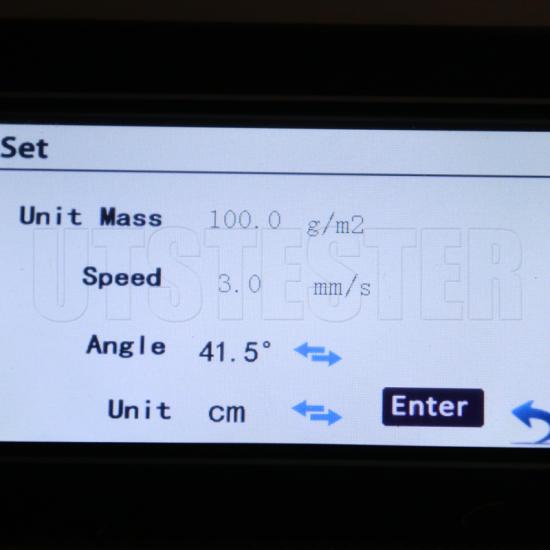

1. Mainframe working mode: microprocessor control, infrared stealthy slope detect, LCD English display, report can be printed out.

2. Online working mode: expertised analysis software, computer operation, report form statistics, print out.

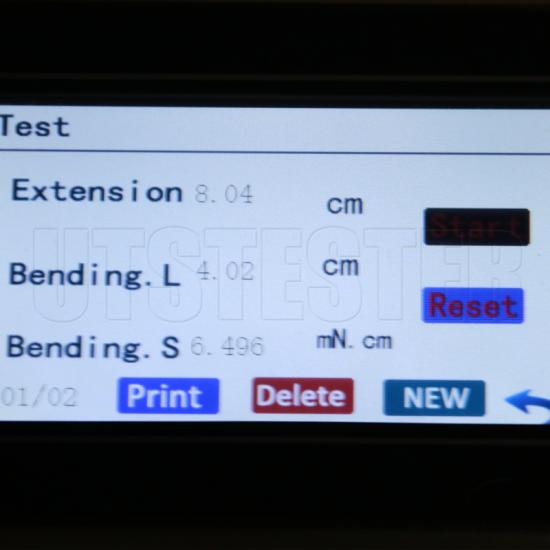

3. Fully automatic measure bending height of fabrics up to 0.01mm with help of laser device and dully displayed on LCD panel;

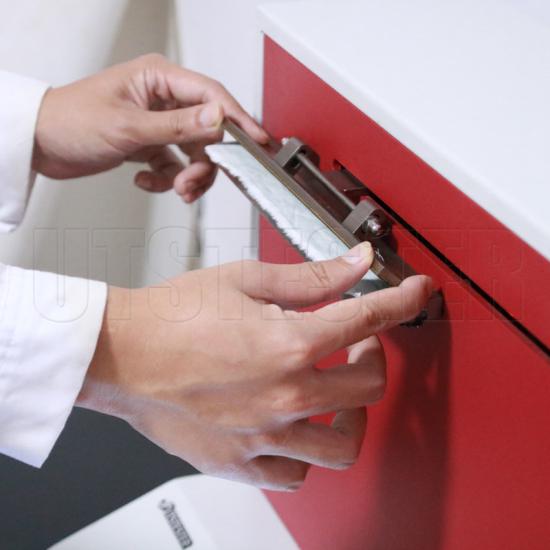

4. Automatic sample holder;

5. Automatic return function after a test;

6. More uniform speed to ensure accurate testing result;

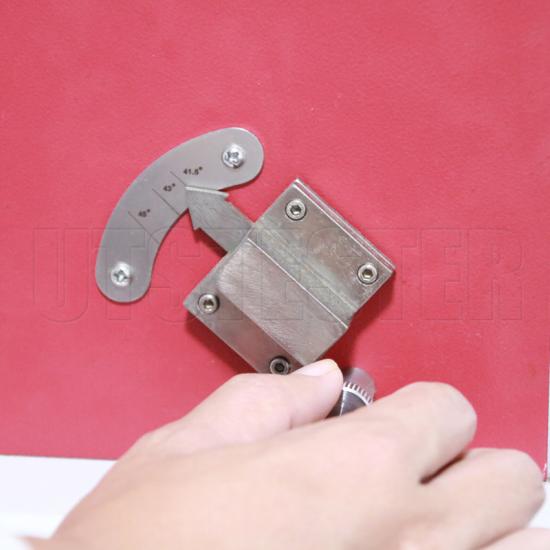

7. Equipped with 3 types of virtual slope, 41. 5°, 43°, 45°;

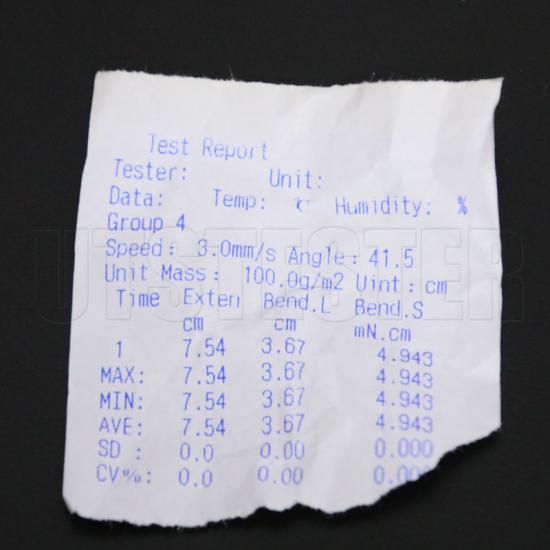

8. Print out the test result by stylus printer.


Key Specifications

Model

M038A

Measuring angle

41.5°, 43°, 45°(Adjustable)

Extension elongation

0.5 - 20.5cm

Measure Accuracy

0.01mm

Sample Size

25 x 25 cm

Sample pressing plate

2.5×25 cm

Sample Press Plate Pushing Speed

0.3cm/s 0.4cm/s 0.5cm/s

Power Supply

1∮ AC 220V 50/60Hz  0.12kw

Dimensions ( L x W x H )

470 x 290 x 405mm

Weight

18Kg


Accessory

Computer controlled software

1pc

PC Cable

1pc

Power Line

1pc



Materials to be Tested

M038A Full Auto Fabric Stiffness Tester, is to test fabrics including cotton, wool, silk, linen, chemical fiber, knitted fabrics, non-woven fabric, coating fabric, etc. As well as for such soft materials as paper, leather, thin film, etc.

M038A Full Auto Fabric Stiffness Tester
