Digital Elmendorf Tearing Tester M006B

M006B Digital Elmendorf Tearing Tester, to determine the tearing resistance strength (Elmendorf method) for various textiles. Also available for thick paper, plastic cloth and electrical insulating tapes.


Three interchangeable pendulums ranging from 16,000 to 128,000 Millinewtons (mN) can be selected separately for multiple test method compliance.

  • Item No.:

    M006B
  • Payment:

    TT, L/C, Wester Union
  • Product origin:

    China
  • Shipping port:

    China Port
  • Lead Time:

    5-25 days
  • Brand:

    UTSTESTER
  • Certificates:

    CE, ISO 17025, ISO 9001
  • Partners:

  • Standards:

    ASTM D1424, DIN 53862; EN ISO 13937-1; ISO 4674-2; ISO 9290; M&S P29; etc
  • Product details
Overview

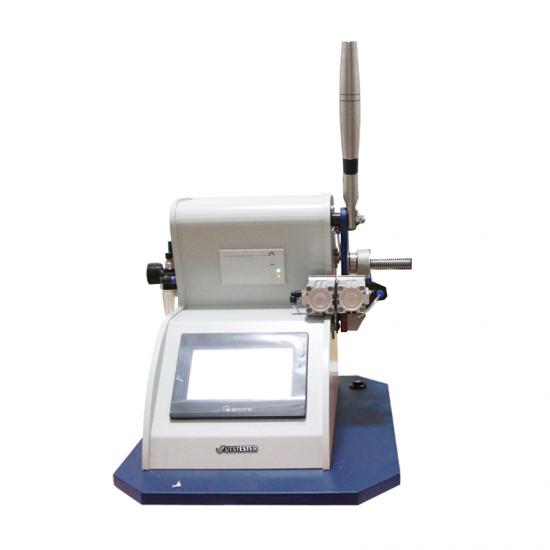

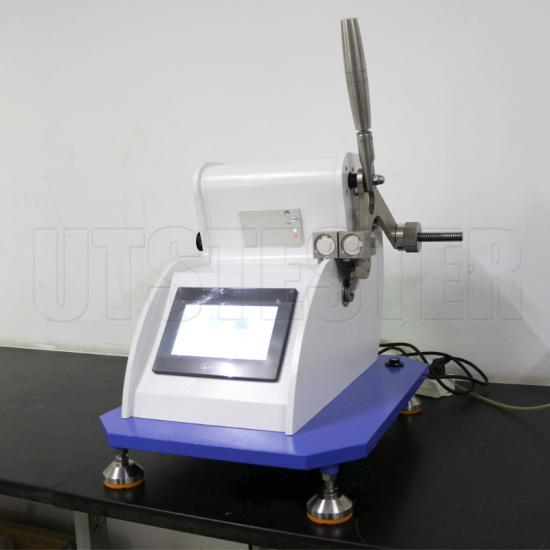

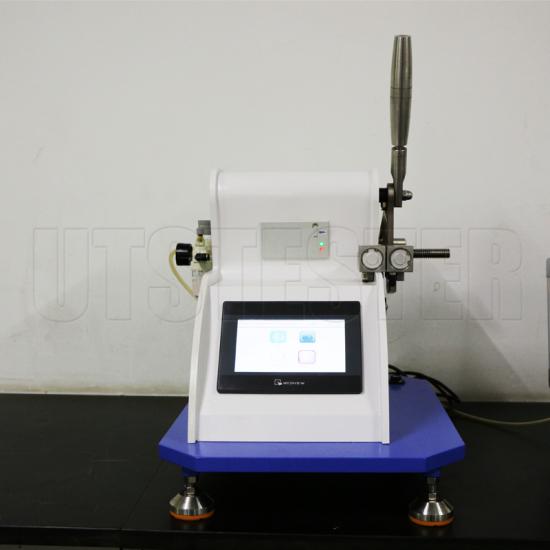

Digital Elmendorf  Tearing Tester M006B, to determine the tearing resistance strength (Elmendorf method) for various textiles. Also available for thick paper, plastic cloth and electrical insulating tapes.

M006B Elmendorf Tear Strength Tester has three interchangeable pendulums ranging from 16,000 to 128,000 Millinewtons (mN) can be selected separately for multiple test method compliance.


Standards

Textiles: GB/T 3917.1; ASTM D1424, DIN 53862; EN ISO 13937-1; ISO 4674-2; ISO 9290; M&S P29; NEXT 17; NF G07-149

Paper: GB/T455, ASTM D689, BS 4468, DIN 53128, CSA D9, ISO 1974,EN 21974, PAPTAC D9, JIS P8116, SCAN P11,UNI 6444, APPITA P400, TAPPI T414

Plastic: GB/T 11999, ISO6383-2, ASTM D1922, NF T54 141, JIS K7128-2

Non woven: ASTM D5734, WSP 100.1



Features

  • Equipped with special aluminium profile table-board, shell processed with metal painting, all of heavy bobs are made of stainless steel.

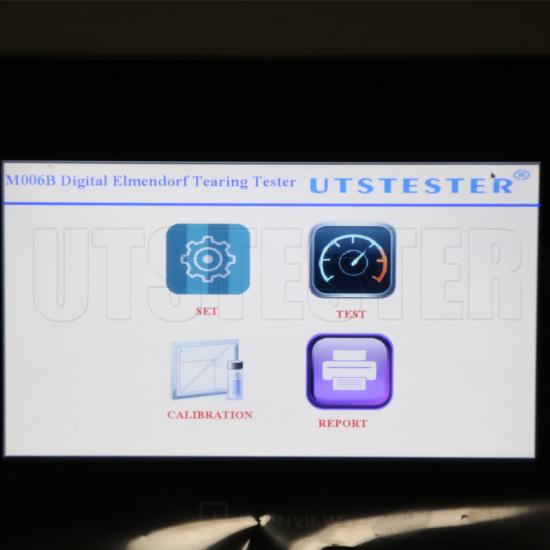

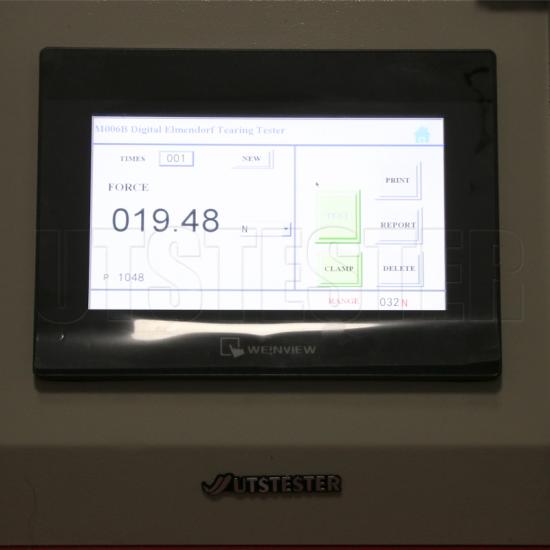

  • Equipped with large screen color touch screen display control.

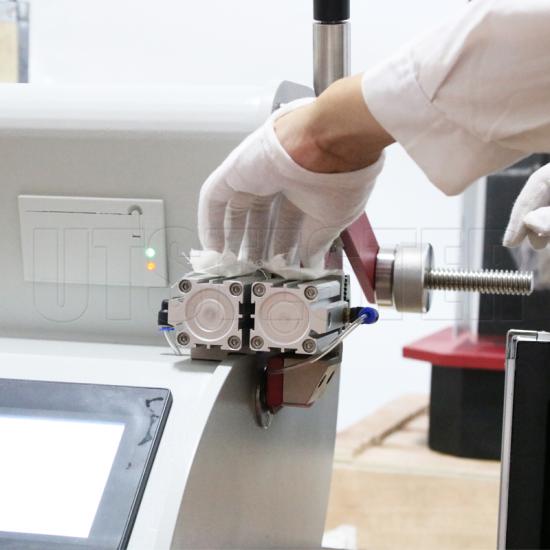

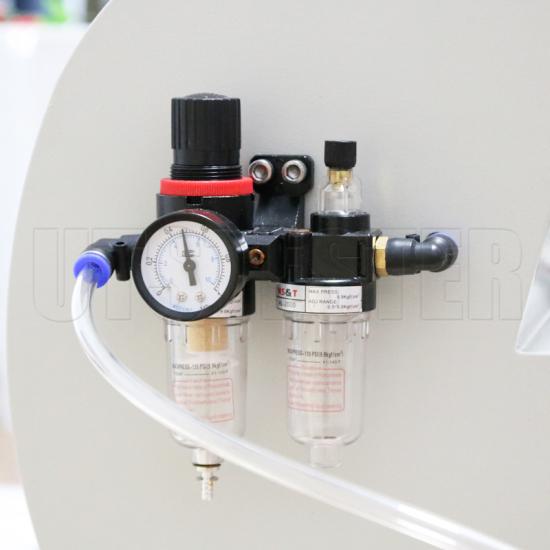

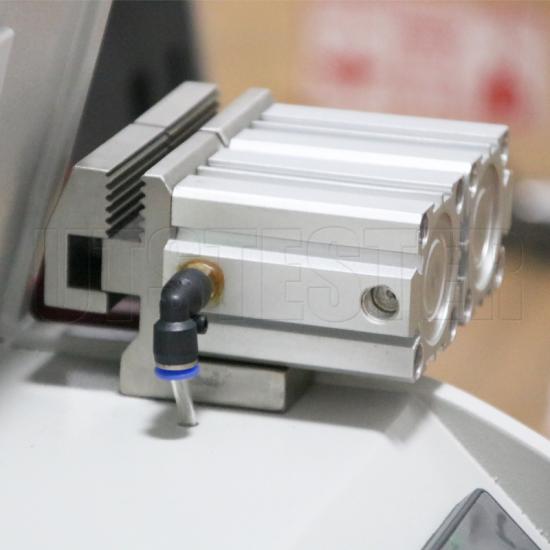

  • Pneumatic clamp with convenient operation advantage.
  • Imported encoder equipped to measure accurately.
  • Friction pendulum damp with auto revision function to improve measuring accuracy.
  • Adopts left and right double button start device to protect operator security.
  • English menu display.
  • Multiple measuring units including mN, cN, N, g, Kg, oz, LB optional to meet different standard requirements.



Key Specifications

Model

M006B

Measuring range

8N, 16N, 32N, 64N, 128N(5 grade measuring range)

Measuring force accuracy

±0.2%F.S

Units

mN, cN, N, g, Kg, oz, LB

Maximum sample thickness

5mm

Length of incision

20±0.2mm

Tearing stroke

86mm( Sample tearing length 43mm)

Sample size

100 x 63 mm

Clamps interval

2.8±0.2mm

Sample clamping methods

Pneumatic clamp

Operation

Automatic electronically controlled device with versatile tear testing options

Braking system

Electronic braking(electromagnetic) and two button release

Control

Controlled and measurements with a microprocessor

Weights

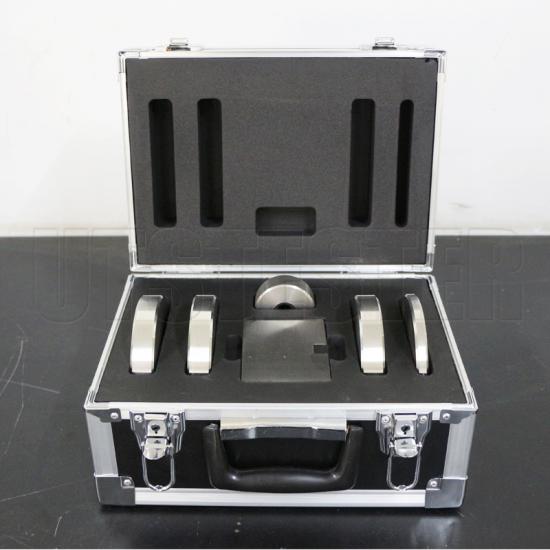

Pendulum and verification weights of 8N, 16N, 32N, 64N, 128N(5 grade measuring range)

Encoder

Angular encoder

Pendulum

Adjustable pendulum balance

Platform

Stable platform

Memory

Capability to save standard and custom made test methods

Software

Included with analysis and results output software, series of testing weights with highest capacity and pendulum kit

Power supply

AC 220V 50/60HZ 100W

Dimensions

440×500×600mm(L x W x H)

Weight

50kg



Material to be Tested

M006B Elmendorf Tear Strength Testeris applicable for various textiles, thick paper, plastic cloth and electrical insulating tapes.

Digital Elmendorf Tearing Tester M006B
