Single Column Universal Tensile Testing Machine M002A-2

Universal testing machine is special for testing tension, compression, bend, shear, bonding strength, break strength, peeling, tearing, cyclic and flexure, etc. Applicable for textiles, fabric, yarn, fiber, rubber, plastics, leather, metal, composites, nylon line, paper, aviation, automotive, biomedical, elastomers, etc

  • Item No.:

    M002A-2
  • Payment:

    TT, L/C, Wester Union
  • Product origin:

    China
  • Shipping port:

    China Port
  • Lead Time:

    10-15 days
  • Brand:

    UTSTESTER
  • Certificates:

    CE, ISO 17025
  • Standards:

    ISO13934.1, ISO13934.2, ISO13937.2, ISO 9073.4, ISO13936.1, ISO13936.2, ISO13935.1, etc.

New Products

Call Us Now

+86 15260605085

  • Product details

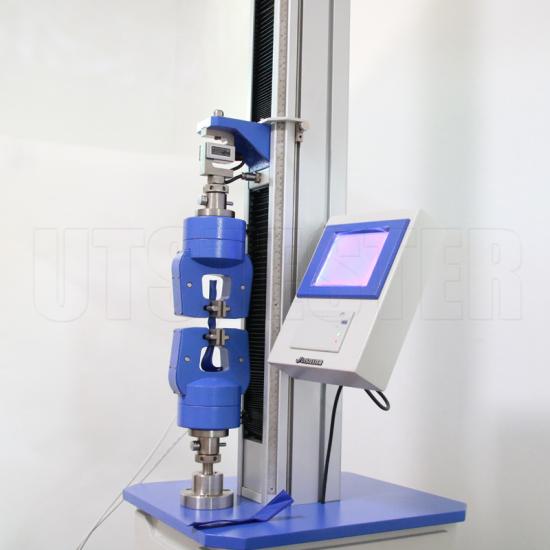

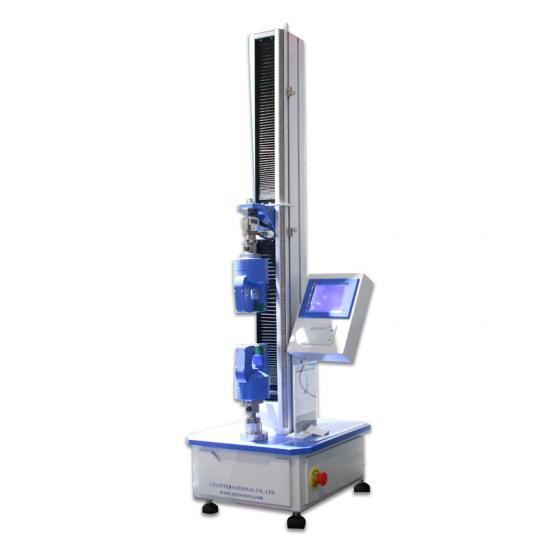

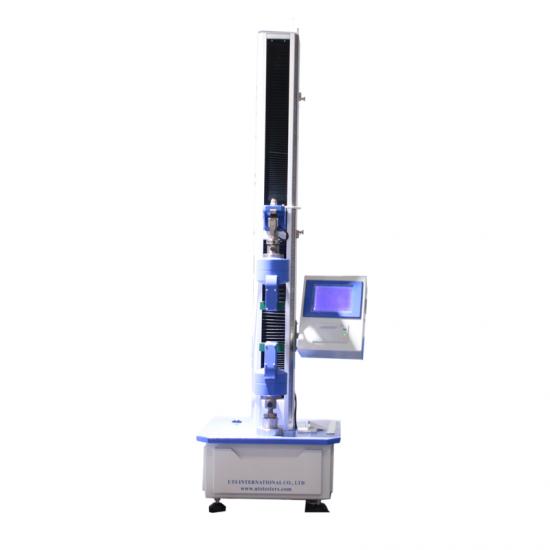

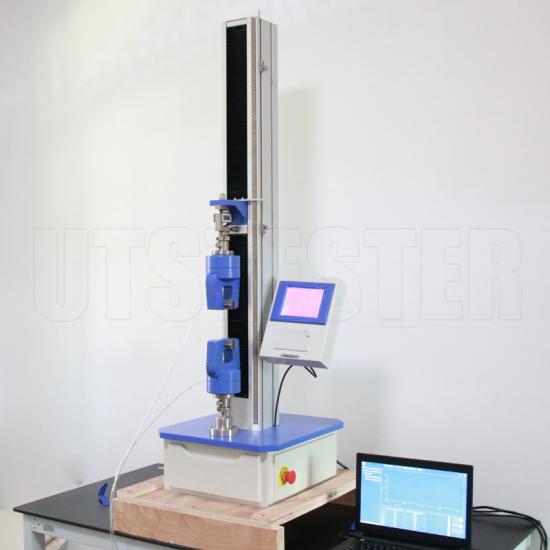

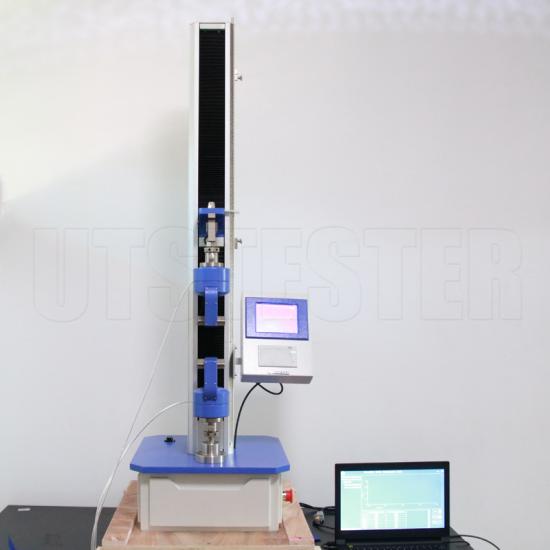

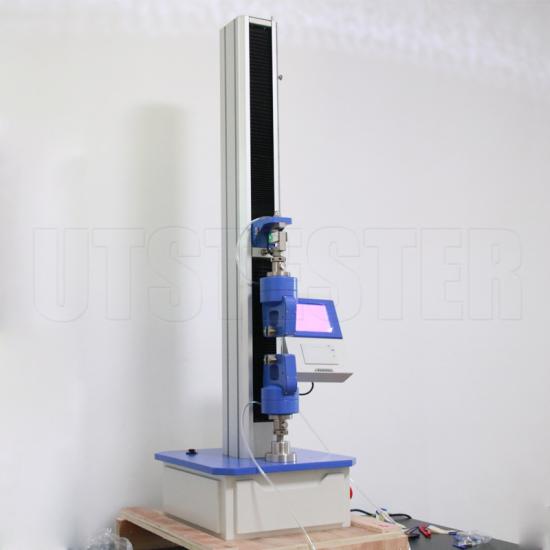

M002A-2 Single Column Universal Tensile Testing Machine

Demonstration Video


Overview

Universal testing machine M002A is most commonly used for quality control, inspection, physical test, mechanics research, material development and production environment. The testing is in a tensile or compression mode in a single frame or dual column. Extra test functions include tension, compression, bend, shear, bonding strength, break strength, peeling, tearing, cyclic and flexure, etc.



This textile tensile strength test equipment is typically found in applications and industries, such as rubber, plastics, leather, metal, composites, nylon line, fabrics, paper, aviation, automotive, biomedical, elastomers, packaging, construction, petrifaction, aviation, petrifaction, electrician, vehicle, etc. Wildly used for R & D and production.



Capacities for this model ranges from low-load forces of 10N up to high capacity 10KN with 2 optional stroke 1100 mm & 900 mm as well as the customized stoke.

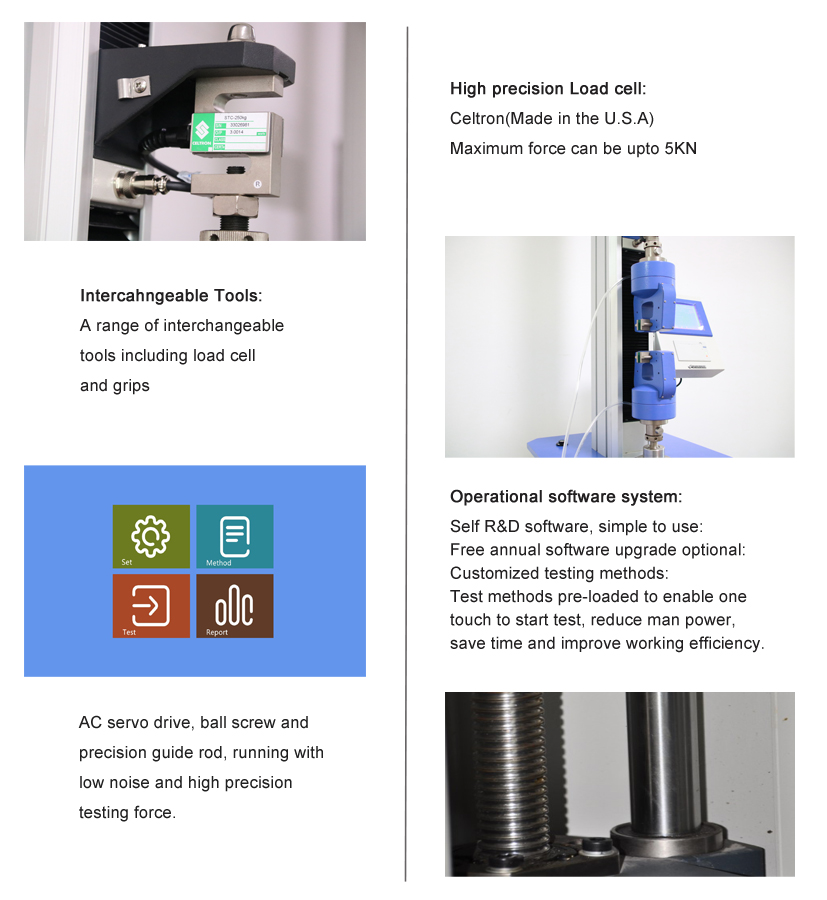

Features

Universal testing machine M002A


Standards

ISO13934.1, ISO13934.2, ISO13937.2, ISO 9073.4, ISO13936.1, ISO13936.2, ISO13935.1, ISO13935.2,

ISO 37, 13936-3, 13937-3, 13937-4, 1421, 2411, 2062, 4674-1, 5082, 9073.3, 9073.4, 9073.18

ASTM D5034; ASTM D5035; ASTM D2261; ASTM D5587; ASTM D4964; ASTM D3936; ASTM D1683, D 434, D751, D885 , D2256, D2724, D2731, D3787, D4034, D5733, D5735, etc.

GB/T19976;  GB 8688; FZ/T80007.1;  FZ/T20019;  FZ/T70006;  FZ/T70007

BS 2543, 2576, 3320, 3424, 4303 , 4304,

M&S P11, P12, P13, P14

JIS L1096, etc



Key Specifications

Model

M002A-1

M002A-2

Stretch speed

0.001-500mm/min

0.001-1000mm/min

Max. Capacity

100N, 200N, 500N,1KN, 2KN, 2.5KN

Effective stroke

600mm

Test Method

CRE Principle (Constant Rate of Elongation)

Test force range

Full stroke 1% ~ 100%

Force Accuracy

≤+/-0.2% F· S

Sample clamp mode

Manual , pneumatic clamp

Stop Mode

Overload Stop, Emergency Stop Button, Specimen Damage Automatic Stop, Upper & Lower Limit Set Automatic Stop, Automatic Return Function

Protection measures

a. Beam’s upper and lower limit protective device

b. Clamp defend touch protective device

c. Displacement set up & load limit software protective device

d. Sensor overload protection

e. Sample load software protection

f. Overcurrent & overvoltage protection

g. Real time monitor for main parts.

Machine Drive

Servo Motor Drive, Synchronous Wheel and Precision Ball Screw Drive

Connection

Available to connect with pad, WIFI or cellphone to control instrument

Power Supply

AC 220V 50/60HZ 500W

Dimensions(WxDxH)

670 x 480 x 1440 mm

Weight

120kg



Accessory

Standard accessories

Manual Grips

1pc

English Operation Software

1pc

Cable Connect with PC

1pc

Load Cell

1pc

Optional accessories

Desk Top Computer

Optional

Pneumatic Grip

Optional

Other Grips and Load Cell

Optional

Extensometer

Optional



Material to be Tested

M002A Textile Universal Testing Machine, is applicable for rubber, plastics, leather, metal, composites, nylon line, fabrics, paper, aviation, automotive, biomedical, elastomers, packaging, construction, petrifaction, aviation, petrifaction, electrician, vehicle, etc.

M002A Textile Universal Testing Machine




FAQ

Q1.  Can we extract data to PC (without the need for an additional software) and we can print the results directly from the machine.
A1. Extract data to PC should be on basis of software. And the Simple test results can be printed out from machine. But the detailed test results including test curve should be printed out by software on computer.

Q2. Is the software is capable of showing real time progress of the test via a stress strain chart.
A2. Yes. The software is capable of showing real time progress of test via a stress strain chart.

Q3. Is An extensometer included in your quotation.
A3. Extensometer is optional accessory which depends on the specified materials tested.


Q4. I am looking for a machine which will test textile fabrics with a facility of checking the tensile strength, seam slippage and seam strength. I like to test ASTM D 434 and ASTM D 5034 .
A4. M002A with 2.5kg load cell will be right equipment for reference. ASTM D 434 and ASTM D 5034 are the regular tests for textiles quality control.

Q5. When we will select the test method it will automatically directs . Like that whether your machine is having the provision to perform the test .
A5. Yes, sure. This equipment is automatic configuration.
