Vertical Flammability Chamber M017A

Fabric flame retardant performance tester is suitable for flame retardant requirements of woven fabrics, knitted fabrics, coated products, laminated products and other vertical direction of the combustion performance measurement.

  • Item No.:

    M017A

  • Payment:

    TT, L/C

  • Product origin:

    China

  • Shipping port:

    China Port

  • Lead Time:

    5-15 Days

  • Brand:

    UTSTESTER

  • Certificates:

    CE, ISO 17025

  • Standards:

    FAR 25.853, CFR1615, CFR1616, GB/T 5455.ASTM D6413 CALIF TB-117

Product categories

New Products

Call Us Now

+86 15260605085

  • Product details

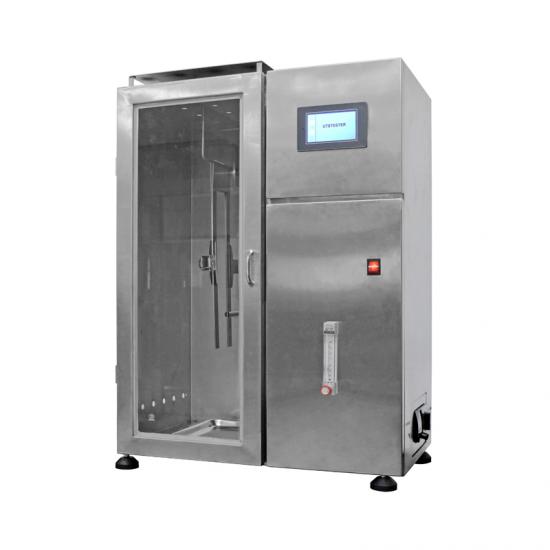

M017A Vertical Flammability Chamber


Overview

Vertical Flammability Chamber is to determine the flammability resistance property for various flame retardant textiles, including woven fabric, knitted fabric, coating products, laminated products, etc. And measure tendency for textiles for continued combustibility, smoldering and carbonization.

Test Principle

Mount sample into the fixture and hang on vertically inside test chamber. Burn the underneath of sample with specified height of flame for a certain of time, record the time of afterflame and smoldering, damaged length, so as to assess its flammability property.

Standards

FAR 25.853, CFR1615, CFR1616, GB/T 5455.ASTM D6413 CALIF TB-117

NFPA 701 Small scale, CPAI 84, CAN/ULC S109 Small flame, UL 214 Small flame, CA Title 19

(Need to confirm the test standards with users)


Features

1, The use of stainless steel material appearance to prevent smoke.

2, The use of industrial color touch screen display control, durable, easy to operate simple.

3, Motor drive ignition mechanism, automatic ignition operation is convenient.

4. The flowmeter adjusts the flame height without constant gas pressure.

5, The instrument resistance wire ignition time can be adjusted, using different environments to ensure ignition.

Key Parameters

Model

M017A-1

M017A-2

M017A-3

Standard

CFR1615, CFR1616,

GB/T 5455.

ASTM D6413

CALIF TB-117



Heavy hammer

54.5g,113.4g,

226.8g, 340.2g,

453.6g

100g, 200g,

300g, 475g

None

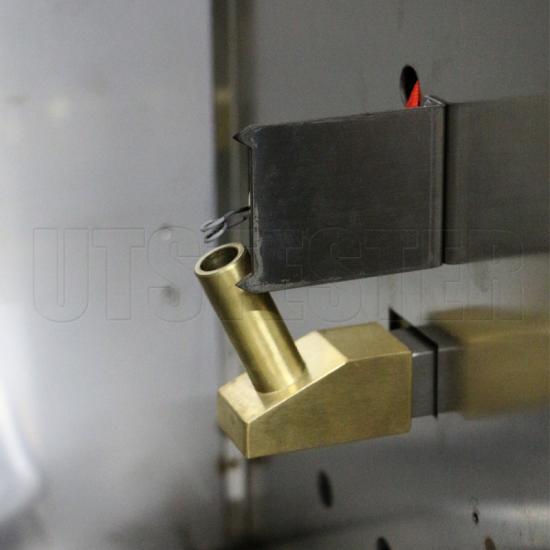

Nozzle

Inner  orifice

diameter

11mm

 10(-0.5)mm

Angle

25 degree

90 degree

Size of sample holder

Out frame

422x89mm x 2mm

442x76x12.5mm

Flexible foam holder

Inner frame

356 x 51mm

Afterflame counter

0.1-999.9s, Resolution 0.1s

Smoldering counter

0.1-999.9s, Resolution 0.1s

Flame burning time

12s(adjustable)

Sample quantity

Long side parallels to the warp-wise, broadwise, 5 pcs for each direction

Chamber material

Imported brushed stainless steel plate

Burning flame height

40±2mm

Burning gas

Propane or butane; Pressure 17.2± 1.7kpa Pressure can be adjusted

Power supply

1∮ AC 220V 50Hz 100W

Interior test chamber size

329×329×767±2mm(L×W×H)

Dimension(W x D x H)

630×400×860mm

Weight

≈30Kg

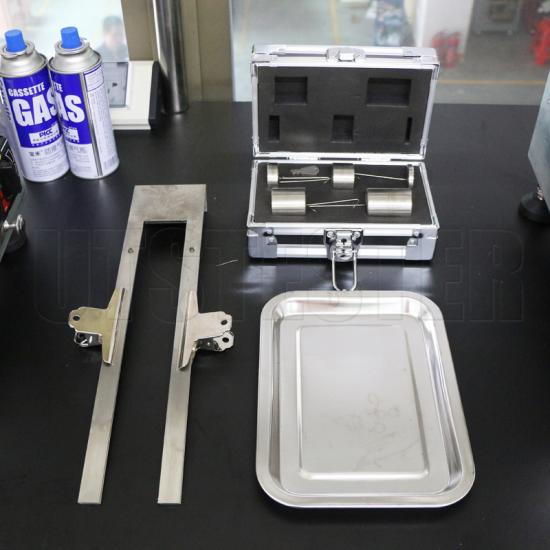

Accessory

Standard accessories

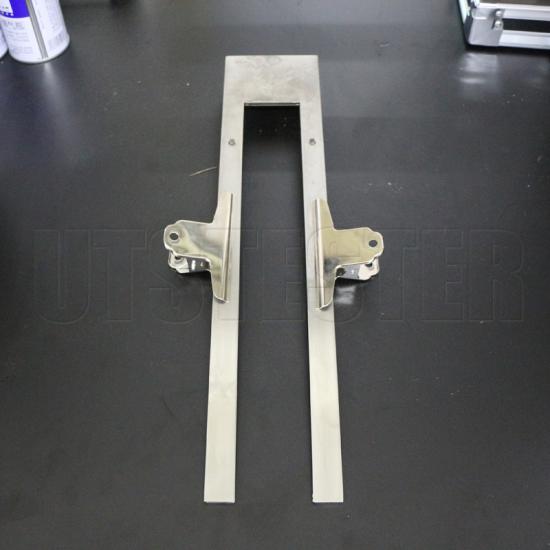

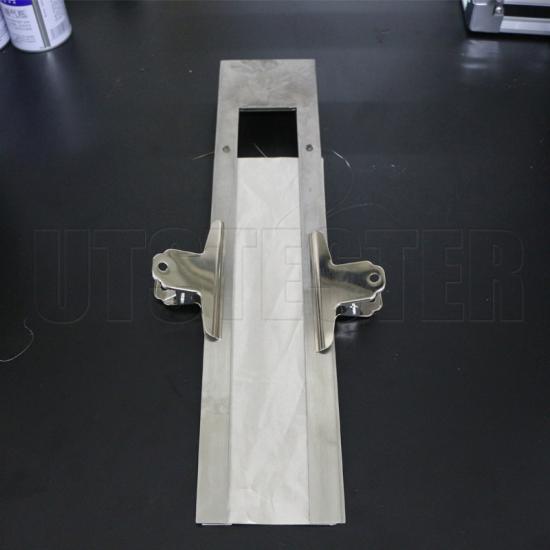

Sample holder

1 set

Stainless steel clamp

4pcs

Weight (54.5g,113.4g,226.8g,340.2g,453.6g)

1 unit for each load

Power line

1pc

Optional accessories

Butane(Prepared by user)

Material to be Tested

M017A Vertical Flammability Test Chamber, is applicable for woven fabrics, knitted fabrics, coated products, laminated products, etc.
