Automatic Feather And Down Filling Power Tester MF01

Automatic Feather And Down Filling Power Tester MF01, unique filter ventilation design, automatic switch between blowing and absorbing positions, to ensure that the feather will not fly around, to prevent harmful to the operator's health.

  • Item No.:

    MF01

  • Payment:

    TT, L/C

  • Product origin:

    China

  • Shipping port:

    China Port

  • Lead Time:

    20-25 Days

  • Brand:

    UTSTESTER

  • Certificates:

    CE, ISO 17025

  • Standards:

    IDFB Part 10-B, GB/T14272-2011, FZ/T80001; BSEN12130

Product categories

New Products

Call Us Now

+86 15260605085

  • Product details

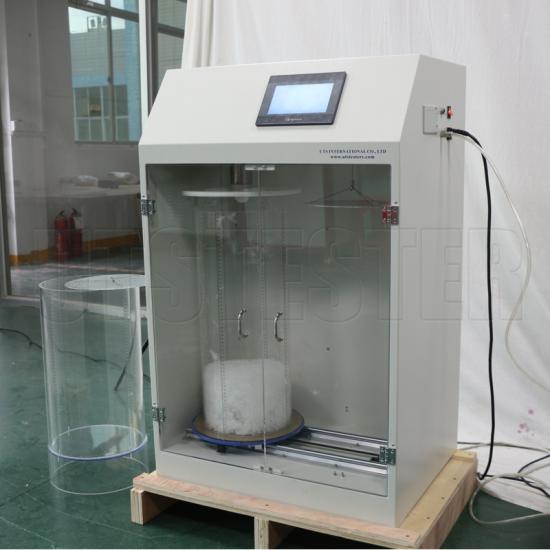

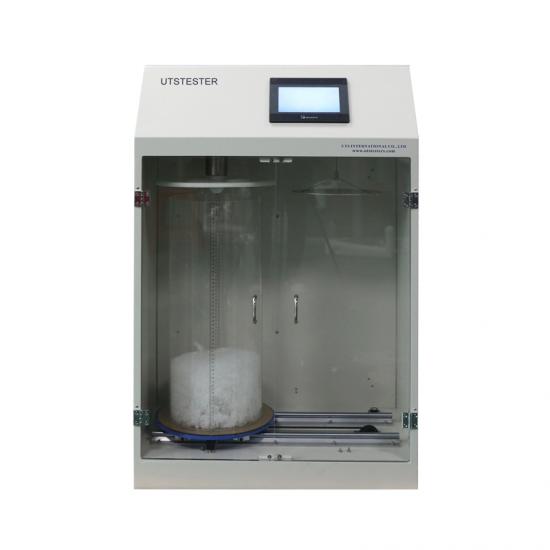

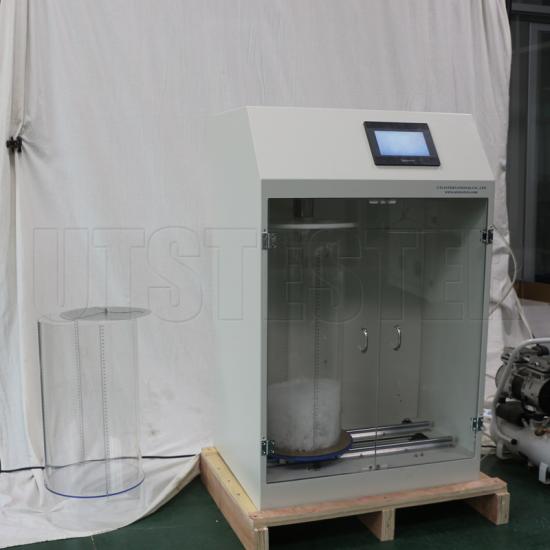

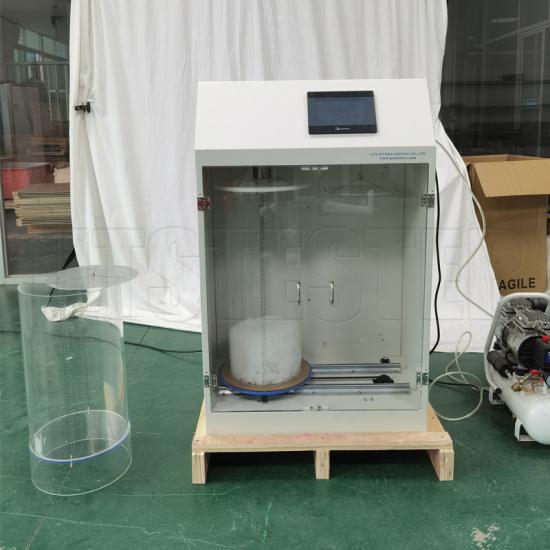

MF01 Automatic Feather And Down Filling Power Tester


Demonstration Video


Application

Automatic Feather And Down Filling Power Tester MF01, To test the filling power of down feather and the products filling materials.

Standards

IDFB Part 10-B,

GB/T14272-2011,

FZ/T80001;

BSEN12130

Test Principle

Pressure on the sample by dropping the platen is applied to the filling material at a constant speed and after a stipulated time the level of the platen is noted. The massic volume is calculated with regard to the height and the known diameter of the graduated cylinder.

Features

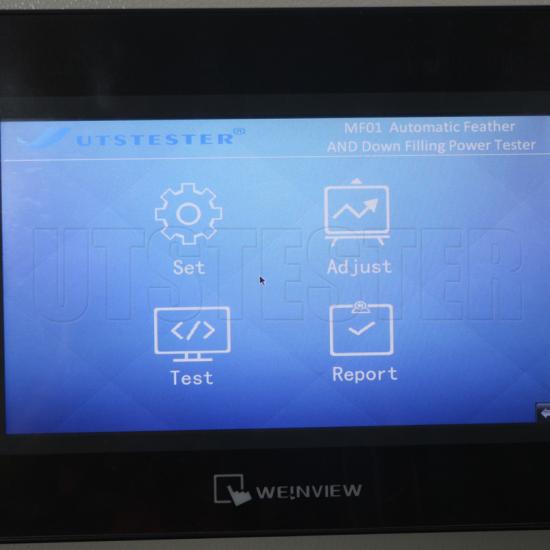

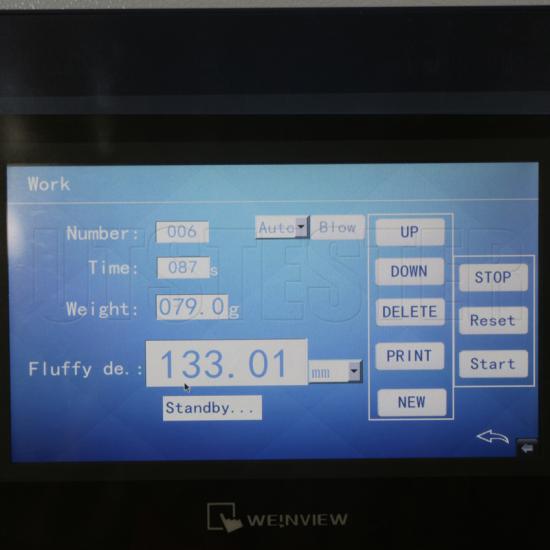

1, Color touch screen display, man-machine dialogue, easy to operate.

2. Unique filter ventilation design, automatic switch between blowing and absorbing positions, to ensure that the feather will not fly around, to prevent harmful to the operator's health.

3. The test speed of the machine can be set, suitable for different standards, and the drive structure adopts servo motor system to make the height accuracy of the unevenness more accurate.

4. Original zero setting system to ensure the accuracy of data.

5. High precision sensor, arm32-bit microprocessor, 16-bit A/D acquisition level of AD company, precise induction of the position of the pressure plate, accurate calculation of test results, applicable to multiple standards.

6. Automatic wind speed design system ensures that the down is in a natural fluffy state, so that the data measured each time has a good authenticity and reproducibility.

7. The test process is completed with one key, and there is no need to manually replace the test bucket and take the time.

8. Fully automatic test, no need to replace the test bucket manually.

Key Specifications

Model

MF01

Measuring Accuracy

0.1mm

Measuring Height

600mm or 750 mm

Test Speed

540mm/min, Settable

Cylinder inner diameter

Ф288 mm , Ф240 mm settable



Option Accessories: Ф290 mm (JISL 1903, BS EN 12130, FZ/T 80001)

Test Platen

Standard Accessories:

94.25g: Ф284 mm or 68.4g :Ф 240 mm, settable

Testing Platen diameter

94.25g Dia. 284mm

68.4g Dia. 240mm

68.4g Dia. 282mm(Optional FZ/T80001)

120g Dia. 285mm(Optional JISL 1903)(settable)

Sample mass

00.1—99.9g, settable

Blowing villus time

1-999s, settable

Compressing villus time

1-999s, settable

Printer

Built-in printer

Power Supply

AC 220V±10% 50/60Hz 1100W

Mainframe Dimensions (L×W×H)

500(L)×550(W)×1200(H)mm

Weight

80kg

Accessory

Ф240 mm (FZ/T80001）Test Cylinder

1pc

Ф288 mm（BSEN12130）Test Cylinder

1pc

68.4g :Ф 240 mm Test Platen

1pc

94.25g: Ф284 mm Test Platen

1pc

Power Line

1pc

Materials to be Tested
MF01 Automatic Feather And Down Filling Power Tester, to test down feather and the products filling materials.
