Snap Button Pull Tester M004A

The main purpose of this tester is used to determine and record the force at which buttons and other small parts (e.g. snap or poppers) attached in children’s garments (& toys) break free of the fabric and present possible choking hazards.
  • Item No.:

    M004A
  • Payment:

    TT, L/C
  • Product origin:

    China
  • Shipping port:

    China Port
  • Lead Time:

    5-7 Days
  • Brand:

    UTSTESTER
  • Certificates:

    CE, ISO 17025
  • Standards:

    16 CFR 1500.51~53 ASTM F963 EN71-Part 1 M&S P115A

New Products

Call Us Now

+86 15260605085

  • Product details

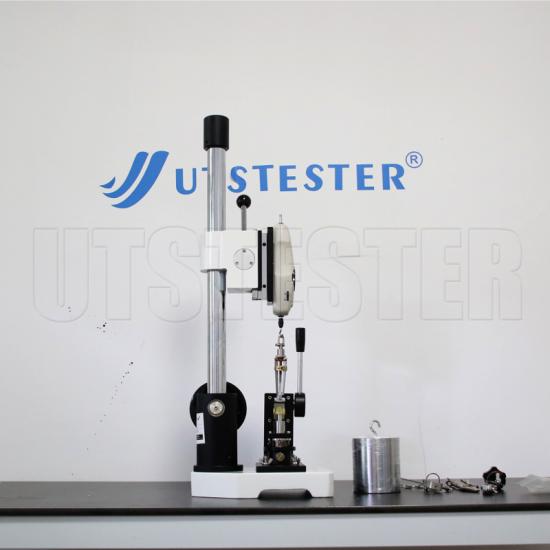

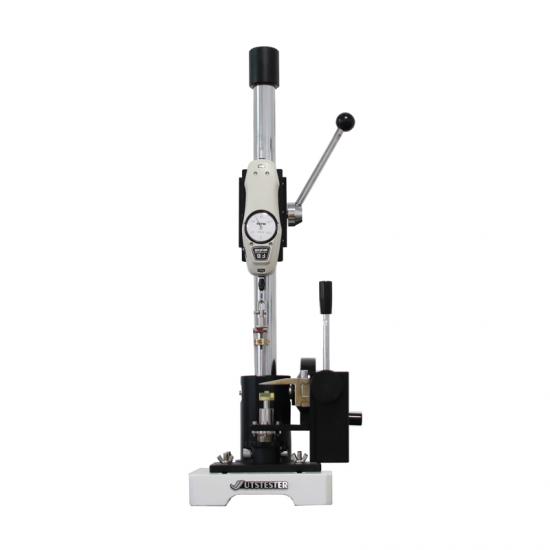

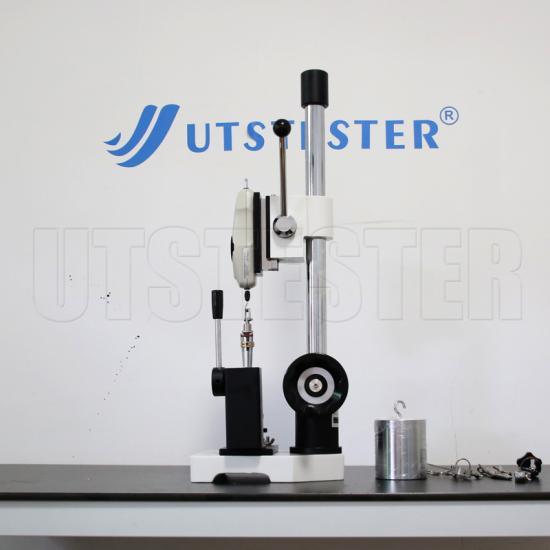

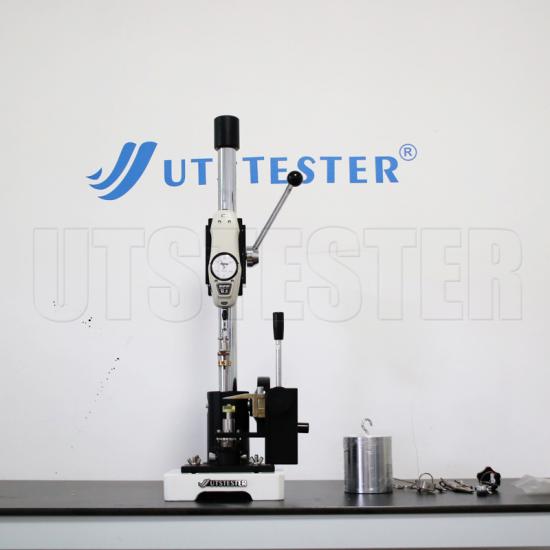

M004A Snap Button Pull Tester


Overview

Button Snap Pull Tester M004A, To determine the holding or breaking strength of the snaps, buttons or fixed accessories attached onto garments. Aim at providing the strict reference basis for garments manufacturers, to ensure the snaps, buttons and fixed accessories can be fixed on garments properly, so as to prevent from snap button fall off and swallow risks for infants.


Working Principle

Clamp the sample attached with attachment( like snap button) on the fabric fixture at the bottom of machine. Select the suitable fixture and install it onto push and pull force gauge. Clamp the attachment on the fabric and apply the pulling force to pull the attachment away from fabric and measure the force value. Or apply a certain of pulling force value and time to test whether the attachment can firmly connect to fabric.



This unit consists of a high precision force gauge, a firm stand and various grips. The specimen accorded with test standards is to be fixed horizontally, then conduct the vertical tensile test on various buttons on garments. The detachment of buttons or other fixed accessories may be classed as small parts, meanwhile, the broken small parts may be required sharp edge and sharp point tests. Hence, extra testing instruments may be recommended, including below:

Sharp Edge Tester (T001)

Small Parts Cylinder (T003)
Sharp Point Tester (T004)


It is widely used in snaps, buttons, toys testing for many brands like H&M, NIKE, NEW BALANCE, LIVIS, NEXT, GAP, etc.


Features

1. Comply with standards 16 CFR 1500.51~53, ASTM F963, EN71-Part 1, M&S P115A.

2. Manually operation, available to install various fixtures to grip samples.

3. This unit consists of a high precision force gauge, a firm stand and various grips.

4. Calibration weight equipped for regular calibrate machine.

5. This device is durable with stable life service time.


Key Parameters

Model

M004A

Push pull force gauge

30kg/300N

Lifting and drop stroke

300mm

Dimensions

32 x 30 x 74 cm

Net Weight

35kg

Standards

16 CFR 1500.51~53 ASTM F963 EN71-Part 1 M&S P115A

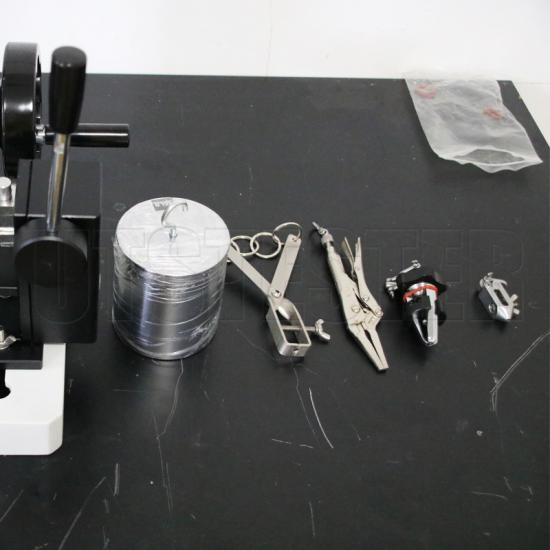

Accessory

Model

Accessory

Description

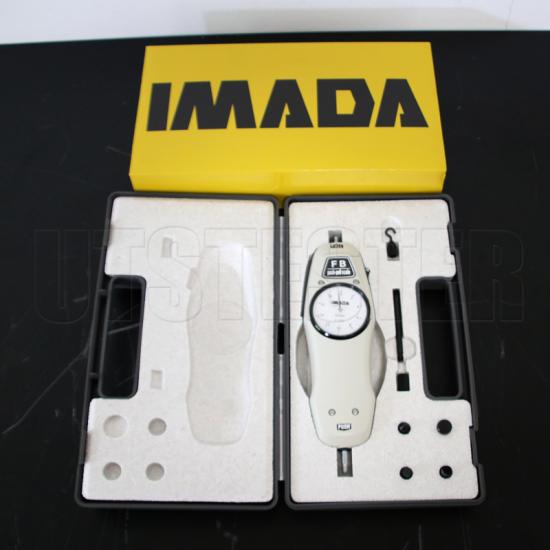

Imada Force gauge

FB-30K

Display force value



MT01

Calibration load weight 15LB

To calibrate the accuracy of force value

MT02

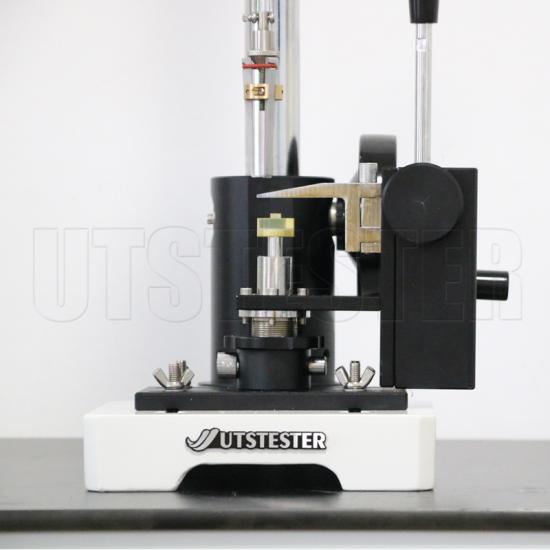

Base fabric fixture

To clamp the various size of snap button

MT03

Upper Long Nose Vise Grip

To clamp trinketry, like retaining ring, etc.



MT04

Three Pronged Grip

Able to adjust clamping month. To clamp various size attachment

MT05

Flat Grip

To clamp various size attachment

MT06

Universal female button grip

Used for testing the concave buttons with five claws

MT07

Universal button stud

Used for testing the convex button with five claws

MT08

Two Pronged Grip

(Optional accessory)

Able to adjust clamping month. To clamp various size attachment

MT09

Seam fixture

(Optional accessory)

Cloth clamp, round cake tongs, test tension with seam

MT10

Multifunction Vise Clamp  (Optional accessory)

For clamping different sample



MT11

Small part cylinder

(Optional accessory)

Determine whether its small part



MT12

Zipper test kit

(Optional accessory)

Used to do zipper test

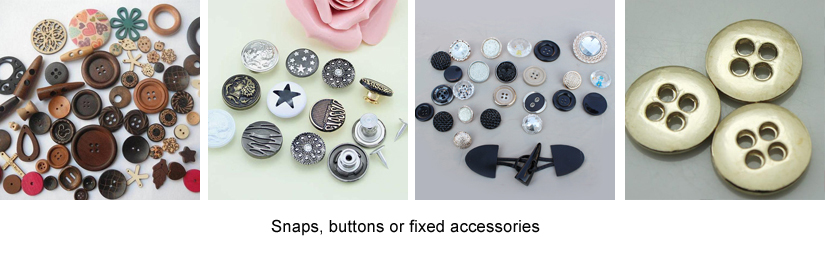

Material to be Tested


D004A Button Pull Test Machine is applicable for snaps, buttons or fixed accessories attached onto garments.
