IULTCS & Veslic Leather Abrasion Tester H046

One side of a specimen is rubbed repeatedly with a piece of felt so as to determine the colorfastness of the specimen. It is applicable to the determination of colorfastness of leather, plastics and textiles.

  • Item No.:

    H046

  • Payment:

    TT, L/C

  • Product origin:

    China

  • Shipping port:

    China Port

  • Lead Time:

    10-15 Days

  • Brand:

    UTSTESTER

  • Certificates:

    CE, ISO 17025

  • Standards:

    ISO 11640, QB/T 2537-2001, EN ISO 20344: 2002 7.3; SATRA PM173

Product categories

New Products

Call Us Now

+86 15260605085

  • Product details

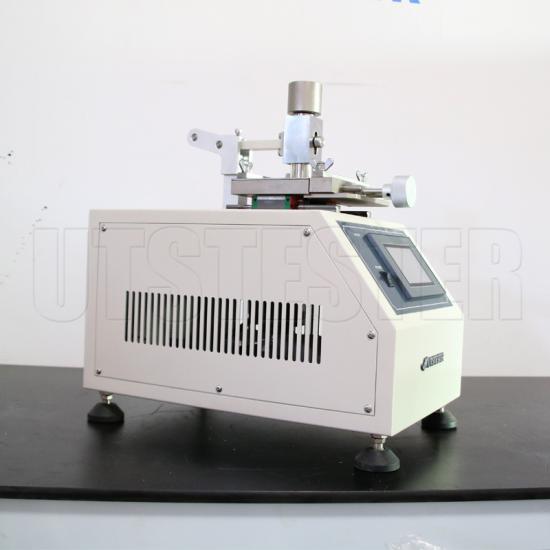

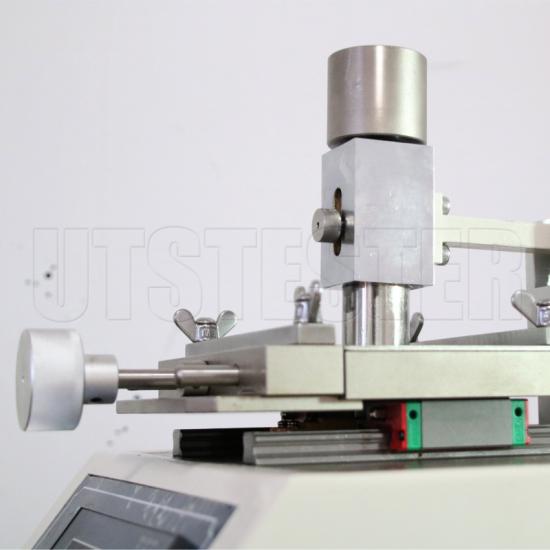

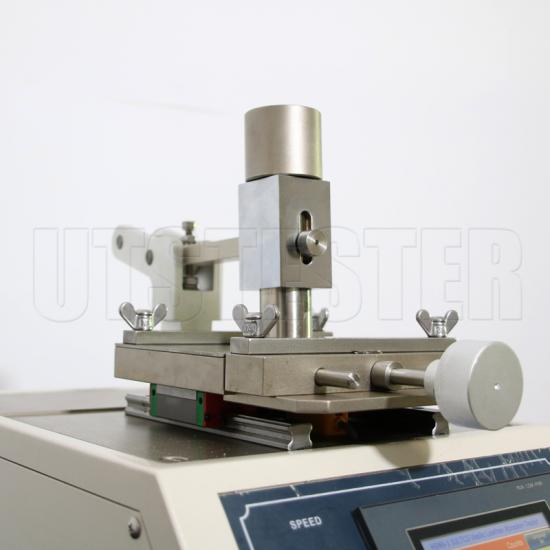

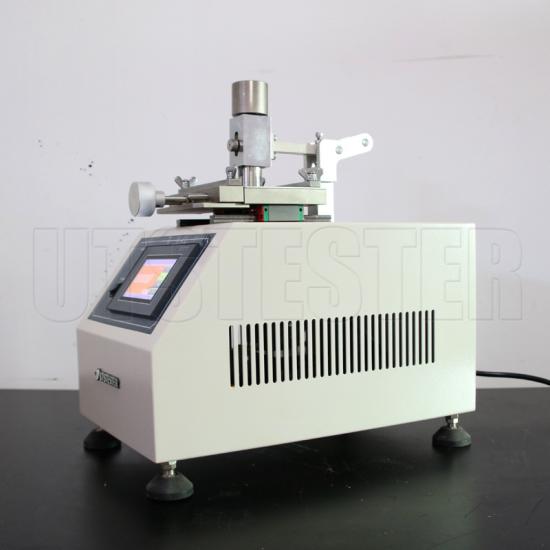

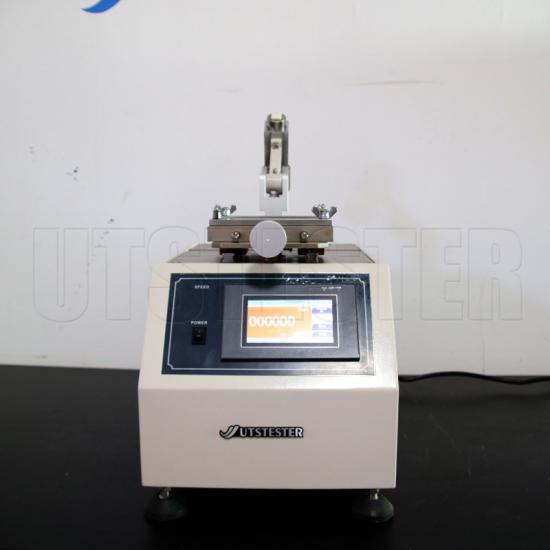

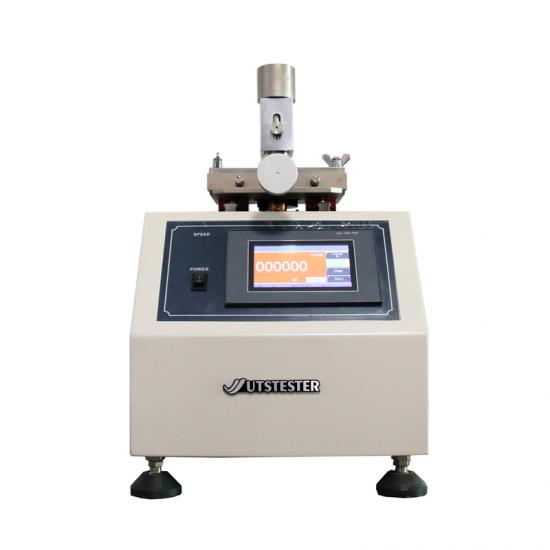

H046 IULTCS & Veslic Leather Abrasion Tester


Demonstration Video

Overview

IULTCS & Veslic Leather Abrasion Tester is designed to do rub fastness test on the surface of leather, plastic and textile materials. So as to determine the amount of marring of leather surface or finish and the amount of color transfer to the wool felt. Dry and wet abrasion tests are available.

Test Method

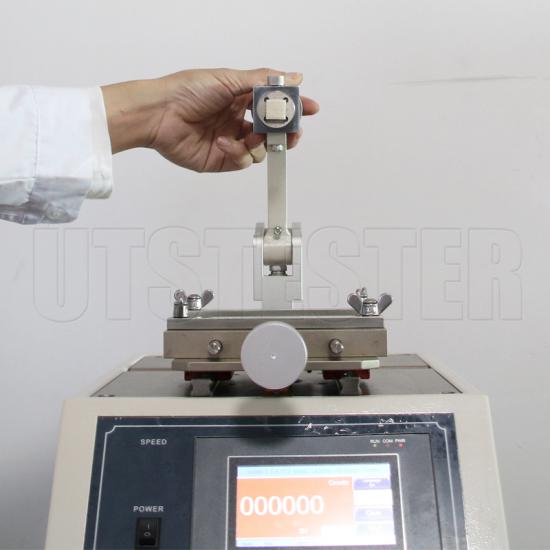

Under specified pressure, the sample is placed on the test surface and clamped to do reciprocating abrasion; Then insert the wool felt in the end of the rubbing head and switch on the tester. After test for specified times, inspect visually the color changing and fading of sample wool felt and discoloration of wool felt. In the case of colour transferring, the wool-felt rubbing pad is evaluated using the grey scale.

Standards

 SATRA TM 173, TM177, BS 1006, DIN 53339, EN ISO 20344:7.3, ISO 11640, QB/T 2537

Key Specifications

Model

H046-1

H046-2

Position

1

2

Sample dimension

120 x 20mm

Rubbing stroke

35±2mm

Test speed

40±2cpm

Extension of sample clamping tension

0 ~ 20%

Counter

LCD,0~99,999,999

Power supply

1∮AC 220V 50/60HZ (Specified by user)

Dimensions (L x W x H)

490 x 320 x 500mm

490 x 450 x 500mm

Weight

36kg

43kg



Accessory

Standard Accessory

500g weight

1unit

Power line

1unit

Optional Accessory

Standard wool pads

1000pcs / pack

Gray scale for color change

1unit

Gray scale for staining

1unit

M019 Pneumatic sample press

(Cut die size: 120x20mm)

Material to be Tested

IULTCS & Veslic Leather Abrasion Tester H046 , is applicable for leather, plastic and textile materials.
