Digital Hydrostatic Head Tester M023C

Digital Hydrostatic Head Tester M023C , is to test the waterproof property for fabric which have been waterproof processed, such coating cloth, tent cloth, tarpaulin, rainproof clothing fabric and non-woven fabric material, etc.



  • Item No.:

    M023C
  • Payment:

    TT, L/C, Wester Union
  • Product origin:

    China
  • Shipping port:

    China Port
  • Lead Time:

    10-20 days
  • Brand:

    UTSTESTER
  • Certificates:

    CE, ISO 17025
  • Standards:

    AATCC 127, BS 3321, ERT 120-1, ISO 811, AFNOR G07-057, BS EN 20811, etc

New Products

Call Us Now

+86 15260605085

  • Product details

M023C Digital Hydrostatic Head Tester


Demonstration Video




Overview

Digital Hydrostatic Head Tester M023C , is to test the waterproof property for fabric which have been waterproof processed, such coating cloth, tent cloth, tarpaulin, rainproof clothing fabric and non-woven fabric material, etc.


Standards

AATCC 127, BS 3321, ERT 120-1, ISO 811, AFNOR G07-057, BS EN 20811, ERT 160-0,

ISO 9073-16, JIS 1092 B-b, ASTM D751, EN 343, GB/T 4744, IST 080.4(01), IST 080.6(01),

WSP 080.6.R4(12), FZ/T01004,  DIN 53886, ISO 1420



Features

• Color touch screen control panel, Built-in English and Chinese menu for ease operation.
• Adding pressure rate adjustable, 1-100 KPa/min
• Adopt improt high precision pressure sensor, automatic overload protection, pressure control • Adopt dynamic feedback adjustment to avoid over laod.
• Seven test units can be selected: Pa, Kpa, mmHg, mmH2O, cmH2O, PSI, Bar.
• Auto stop machine and record test value once sample burst during testing.
• Working modes: Supercharge method, Constant pressure and time, Constant pressure and timing, Leaking method, flexing test.
• Test data can be saved 30*20 times, equipped with micro-printer to print out data directly.
• LED lighting of sample area
• 100 cm² test head included
• Quick Test feature saves technician time


Key Specifications

Model

M023C-1

M023C-2

Testing range

500pa-200kpa

5kpa-500kpa

Sample test area

100cm2

7.8cm2(Optional)

Water pressure rising rate

1kpa -30kpa

1kpa-100kpa

Accuracy

0.2%F.S

Test mode

Supercharge method

Leaking method

Testing unit

Pa, Kpa, mmHg, mmH2O, cmH2O, PSI, Bar.

Power supply

AC 220V 50/60HZ  100W

Dimension

550 x 400 x 500mm (L x W x H)

Weight

50 kg


Material to be Tested

Digital Hydrostatic Head Tester M023C , is applicable for coating cloth, tent cloth, tarpaulin, rainproof clothing fabric and non-woven fabric material, etc.

Digital Hydrostatic Head Tester M023C



Leave a message
UTS team is ready to provide service for you. Your demands will be feedback within 24 hours.
Just click SUBMIT now to get official quotation or testing solution.
Related products
horizontal flammability tester

Horizontal Flammability Tester M016A

To determine the horizontal burn rates and burn resistance of textiles, particularly those for automotive interior use. It is the flammability test about the required time which flame spreads at horizontal direction to the specified distance.

16 CFR 1610 flammability tester

45 Degree Automatic Flammability Tester M015

To determine textile damaged area and length at 45 degree condition and the times of touching flame when textile is melted to specified length after heated at 45 degree condition. Stainless steel test cabinet with glass observation panel provided with automatic timing of flame spread in 0.1 second increments from ignition. Automatic or manual flame impingement for 1,5 or 20 seconds.

Stoll Quartermaster supplier

Universal Wear Tester (Stoll Quartermaster) M013

Universal Wear Tester (Stoll Quartermaster) M013 for measuring resistance to laboratory wear and abrasion of such materials as woven and knitted fabrics, footwear, napped and pile fabrics, hosiery, felt, non-woven and coated fabrics, yarns, threads and cordage, plastic films, rubber sheeting, leather, paper and, many other materials.

ici pilling and snagging tester manufacturer

ICI Pilling Tester M010A

M010 ICI Pilling Tester is used to assess surface pilling degree for fabrics particularly wool knitted fabric. The color touchscreen controller has all the standard tests preloaded so tests can be started with just a couple of touches. Magnetic backed cork liners make cork changes easy without the need tow remove the box from the drive.

taber abrasion astm

Two Heads Taber Abraser M009B-2

M009B-2 Taber Abraser , with two working positions, to determine the wear resistance(including mass loss, thickness loss, and transmittance etc.) of all kinds of structures including textiles, paper, glass, metals, paints, plated surfaces, coated materials, leather and rubber.

taber abrasion tester manufacturer

Taber Abraser M009B-1

M009B-1 Taber Abraser, To determine the wear resistance(including mass loss, thickness loss, and transmittance etc.) of all kinds of structures including textiles, paper, glass, metals, paints, plated surfaces, coated materials, leather and rubber. Wear sample via a couple of abrasive wheels with adding the specified load. Sample rotates and simultaneously drive abrasive wheels so as to wear test sample.

bursting strength tester manufacturer

Hydraulic Bursting Strength Tester M007A

Hydraulic Bursting Strength Tester, Adopts hydraulic method to determine the burst strength and burst expansion property for various textiles, including knitted fabric, woven fabric and non-woven fabric, laminated fabric under standard or wet condition.

ISO 4674-2 elmendorf tear tester supplier

Digital Elmendorf Tearing Tester M006B

M006B Digital Elmendorf Tearing Tester, to determine the tearing resistance strength (Elmendorf method) for various textiles. Also available for thick paper, plastic cloth and electrical insulating tapes. Three interchangeable pendulums ranging from 16,000 to 128,000 Millinewtons (mN) can be selected separately for multiple test method compliance.

GB/T14272 automatic feather and down filling power tester

Automatic Feather And Down Filling Power Tester MF01

Automatic Feather And Down Filling Power Tester MF01, unique filter ventilation design, automatic switch between blowing and absorbing positions, to ensure that the feather will not fly around, to prevent harmful to the operator's health.

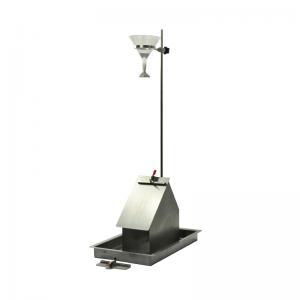

 AATCC 42 Impact Penetration Tester
