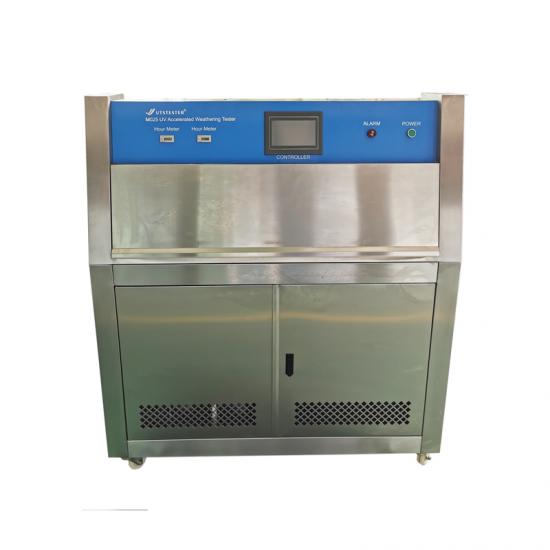

UV Accelerated Weathering Tester M025

To simulate the destructive effect for materials from sunshine, moisture and temperature. Materials aging including fade, loss of gloss, low intensity, cracking, peeling, pulverization, and oxidation, etc. UV accelerated weathering tester simulate sunshine, condensation and natural moisture condition, and samples stay inside this condition can be equaled to stay outdoor for several months or years.
  • Item No.:

    M025
  • Payment:

    TT, L/C, Wester Union
  • Product origin:

    China
  • Shipping port:

    China Port
  • Lead Time:

    10-15 days
  • Brand:

    UTSTESTER
  • Certificates:

    CE, ISO 17025
  • Standards:

    ASTM G 153, ASTM G 154, ASTM D 4329, ASTM D 4799,ASTM D 4587, SAE J2020, ISO 4892, etc
  • Product details

Overview

UV Accelerated Weathering Tester, To simulate the destructive effect for materials from sunshine, moisture and temperature. Materials aging including fade, loss of gloss, low intensity, cracking, peeling, pulverization, and oxidation, etc. UV accelerated weathering tester simulate sunshine, condensation and natural moisture condition, and samples stay inside this condition can be equaled to stay outdoor for several months or years.


The Fluorescent Ultra-Violet Lamp of UV aging chamber can reappear the effect of sunshine, Condensation and water spray system can reappear the effect of rain and dew.


Standards

ASTM G 153, ASTM G 154, ASTM D 4329, ASTM D 4799

ASTM D 4587, ASTM D1148, SAE J2020, ISO 4892, etc



Structure

UV Accelerated Weathering Tester

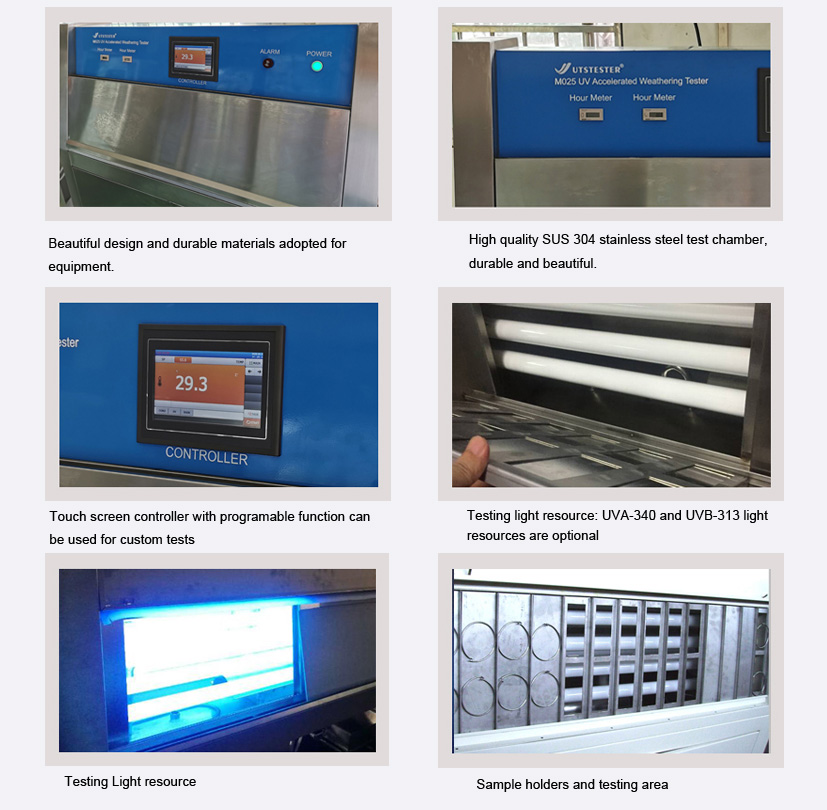

Features

UV Accelerated Weathering Tester



Key Specifications

Model

M025

Control Type

Touch Screen Control(TEMI880)

Test chamber size

450×1170×500mm

Outside chamber size

550×1300×1480mm

Machine material

Totally SUS 304 stainless steel

Sample holder

Aluminium alloy

Temperature range

RT+10~70

Humidity range

90%RH

Temperature uniformity

±1

Temperature fluctuation

±0.5

Interior center distance of lamp

70mm

Irradiance

Within 1.0W/m2 adjustable

Light, condensation and spray cycle

Adjustable

Lamp

L=1200/40W, 8 pcs(UVA/UVB with life time above 1600h)

Standard sample size

75×290mm

Water bath depth

25mm auto control

Effective radiation area

900×210mm

Test time

0~999 Hours

Irradiation blackboard temperature

50~70

Standard sample holder

24 pcs

Ultraviolet Wavelength

UVA 340

315-400nm



UVB 313

280-315nm

Power Supply

AC 220V 50/60HZ  5KW

Dimension(W×H)

1300×550×1480mm

Weight

150 kg



Material to be Tested

UV Accelerated Weathering Tester M025, It is widely used in coatings, inks, paints, resins, plastics, printing and packaging, adhesives, automobile, motorcycle industry, cosmetics, metals, electronics, electroplating, medicine, etc.

UV Accelerated Weathering Tester M025

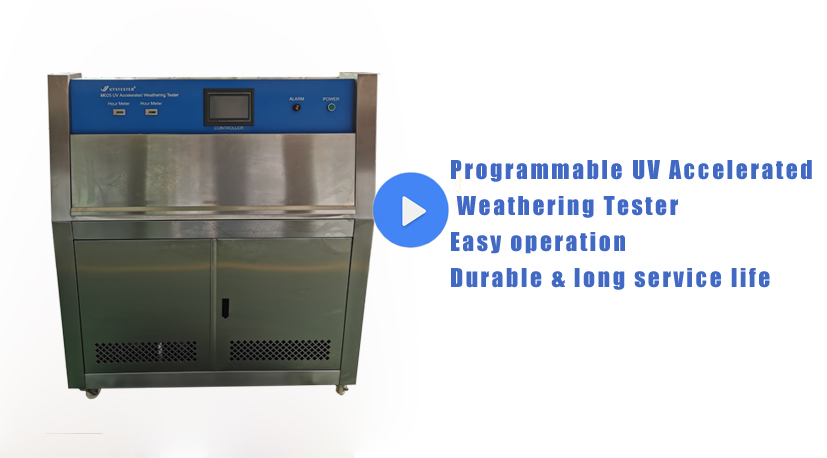

Demonstration Video

UV Accelerated Weathering Tester M025
