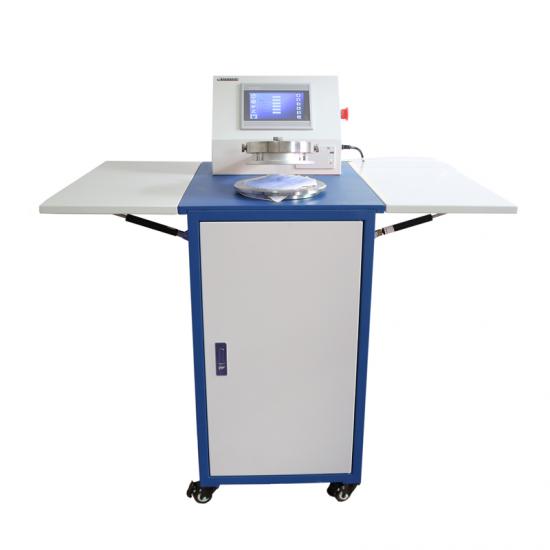

Digital Air Permeability Tester M027A

To test the air permeability of various woven fabrics, including industries fabrics, non-woven and other breathable fabric.

  • Item No.:

    M027A
  • Payment:

    TT, L/C, Wester Union
  • Product origin:

    China
  • Shipping port:

    China Port
  • Lead Time:

    10-15 days
  • Brand:

    UTSTESTER
  • Certificates:

    CE, ISO 17025
  • Partners:

    SGS, UL, etc
  • Standards:

    GB/T5453   GB/T13764  ISO9237  ISO7231  ISO5636   ASTM D737  DIN 53887  JIS L1096  BS5636
  • Product details

Demonstration Video


Overview

Digital Air Permeability Tester M027A, To test the air permeability of various woven fabrics, including industries fabrics, non-woven and other breathable fabric.

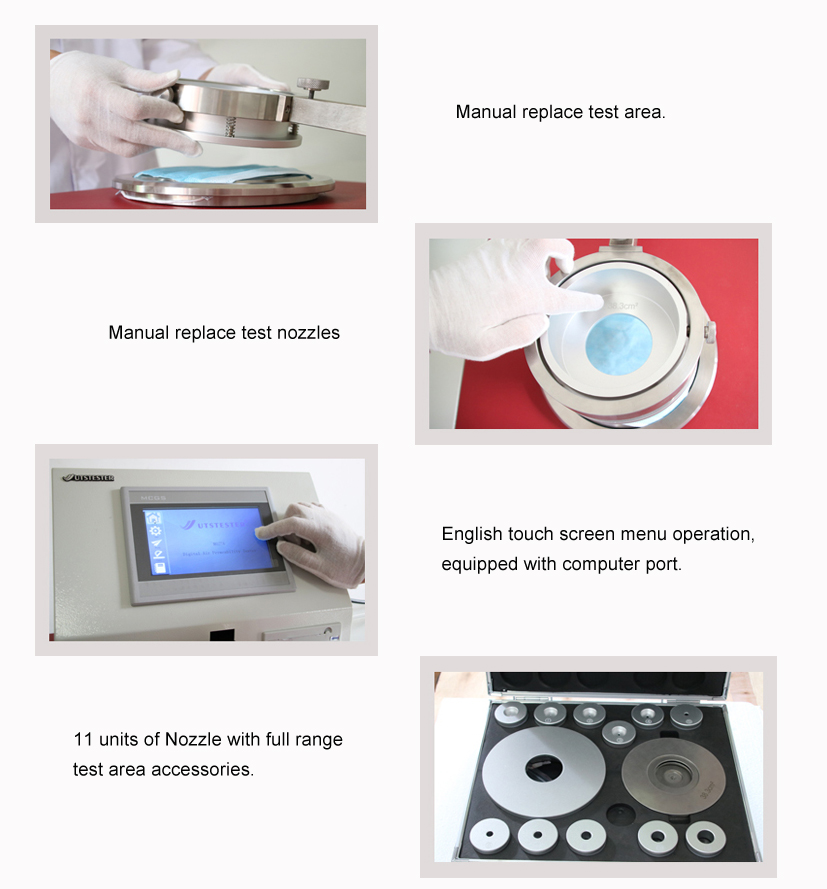

Features

Digital Air Permeability Tester M027A


Standards

GB/T5453   GB/T13764

ISO9237  ISO7231  ISO5636

ASTM D737  DIN 53887

JIS L1096  BS5636



Key Specifications

Model

M027A

Operation display

Touch screen

Pressure difference range

1-4000Pa

Permeability range

0.1~12000mm/s

Measuring error

≤±2

Fabric thickness

≤12mm

Testing area

5cm2, 20cm2, 50cm2, 100cm2

Ф50mm (≈19.6cm2), Ф70mm(≈38.5cm2)

Nozzle parameter

No.

0

1

2

3

4

5

6

7

8

9

10



Φ (mm)

0.8

1.2

2

3

4

6

8

10

12

16

20

Power supply

AC 220V 50/60HZ, 2KW

Dimensions

700 x 520 x 1100mm (L x W x H)

Weight

93kg



Material to be Tested

M027A Digital Air Permeability Tester, To test the air permeability of various woven fabrics, including industries fabrics, non-woven and other breathable fabric.

M027A Digital Air Permeability Tester
