Electronic Crockmeter D004

Crockmeter is used to determine colourfastness to wet and dry rubbing. Apart from textiles, also available for carpets, laminates, and printing inks, as well as the micro-scratch resistance of lacquers, coatings and painted surfaces. Motorized for frequent use and long run tests, fitted with digital electronic counter with strokes up to 9999.

  • Item No.:

    D004
  • Payment:

    TT, L/C, Wester Union
  • Product origin:

    China
  • Shipping port:

    China Port
  • Lead Time:

    10-15 days
  • Brand:

    UTSTESTER
  • Certificates:

    CE, ISO 17025
  • Partners:

    SGS, UL, etc

New Products

Call Us Now

+86 15260605085

  • Product details

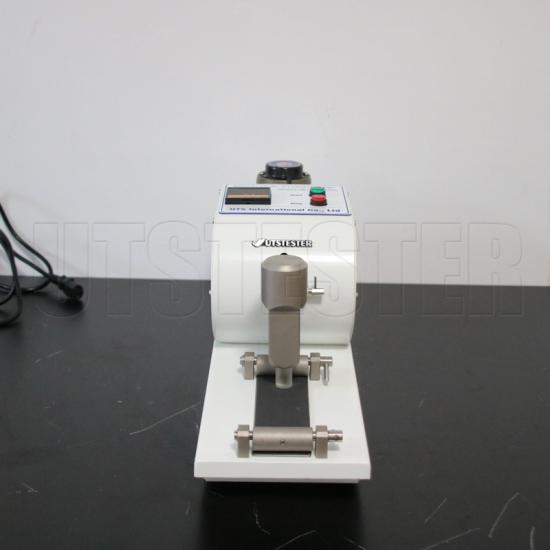

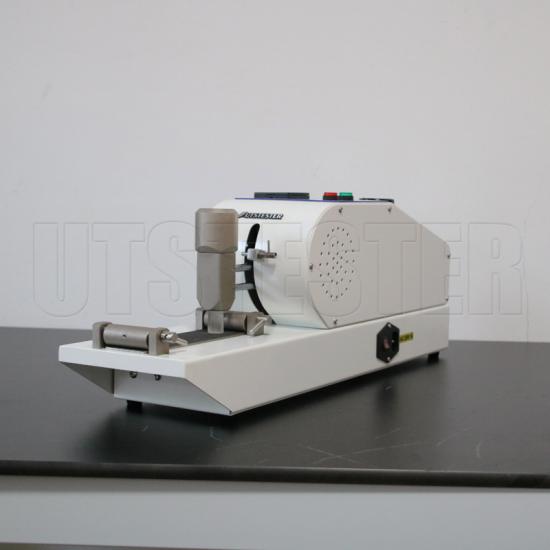

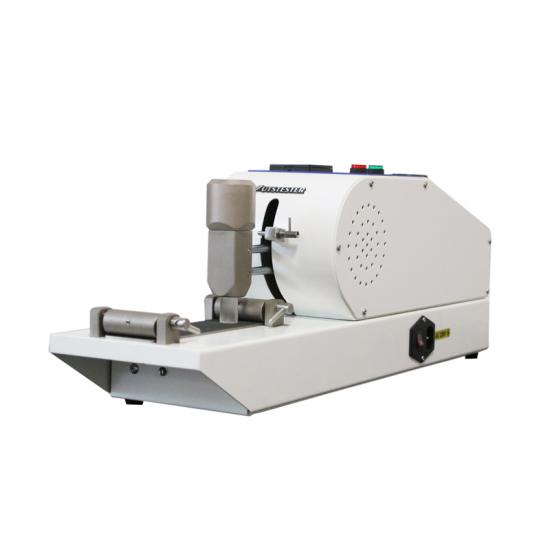

D004 Electronic Crockmeter


Demonstration Video


Overview

Electronic Crockmeter D004, is used to determine colourfastness to wet and dry rubbing.

Apart from textiles, D004 Motorized rubbing colorfastness tester is also available for carpets, laminates, and printing inks, as well as the micro-scratch resistance of lacquers, coatings and painted surfaces.

Motorized for frequent use and long run tests, fitted with digital electronic counter with strokes up to 9999.


Standards

BS 1006 D02

ISO 105×12/D02

AATCC 8165

BS 4655



Features

1. Motorized equipment to save humanpower with high work efficiency.

2. Complete test accessories provided to start test directly.

3. Durable materials adopted with long service life.



Key Specifications

Model

D004

Rubbing head diameter

16mm

Rubbing head stroke

104 / 100mm

Vertical pressure

9N±2N

Working platform size

215 x 70mm

Test speed

60±2 rpm

Power supply

AC 220V 50/60HZ

Dimension ( L x W x H )

600×230×260mm(L×W×H)

Weight

10kg



Material to be Tested

D004 Motorized Crockmeter is applicable for textiles, carpets, laminates, and printing inks, as well as the micro-scratch resistance of lacquers, coatings and painted surfaces.

D004 Motorized Crockmeter
