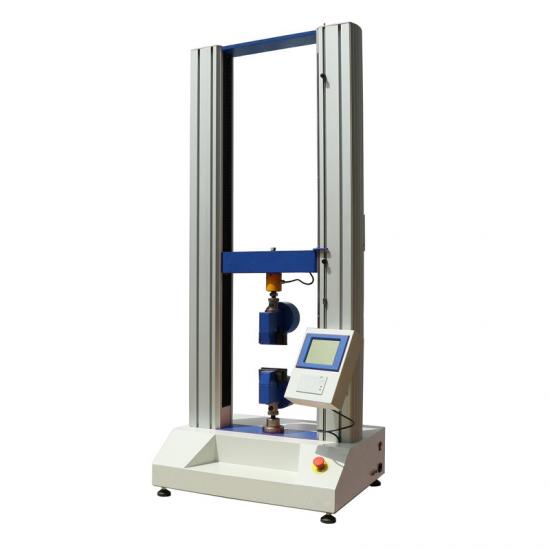

Universal Testing Machine M001

Universal testing machine is most commonly used for quality control, inspection, physical test, mechanics research, material development and production environment. Extra test functions include tension, compression, bend, shear, bonding strength, break strength, peeling, tearing, cyclic and flexure, etc.

Item No.:
M001
Payment:
TT, L/C, Wester Union
Product origin:
China
Shipping port:
China Port
Lead Time:
10-15 days
Brand:
UTSTESTER
Certificates:
CE, ISO 17025
Partners:
SGS, UL, etc
Standards:
ISO 13936-3, 13937-3, 13937-4, 1421, 2411, 2062, 4674-1, 5082, 9073.3, 9073.4, 9073.18 ASTM D5034, etc

Contact now

Product categories

New Products

Call Us Now

+86 15260605085

Product details

Overview

Universal testing machine is most commonly used for quality control, inspection, physical test, mechanics research, material development and production environment. The testing is in a tensile or compression mode in a single frame or dual column. Extra test functions include tension, compression, bend, shear, bonding strength, break strength, peeling, tearing, cyclic and flexure, etc.

This tensile strength test equipment is typically found in applications and industries, such as rubber, plastics, leather, metal, composites, nylon line, fabrics, paper, aviation, automotive, biomedical, elastomers, packaging, construction, petrifaction, aviation, petrifaction, electrician, vehicle, etc. Wildly used for R & D and production.

Capacities for this model ranges from low-load forces of 10N up to high capacity 10KN with 2 optional stroke 11oo mm & 900 mm as well as the customized stoke.

Standards

GB/T3923.1 (Equivalent to ISO13934.1)

GB/T3923.2 (Equivalent to ISO13934.2)

GB/T3917.2 (Equivalent to ISO13937.2)

GB/T3917.3 (Equivalent to ISO9073.4)

GB/T13772.1(Equivalent to ISO13936.1)

GB/T13772.2 (Equivalent to ISO13936.2)

GB/T13773.1(Equivalent to ISO13935.1)

GB/T13773.1(Equivalent to ISO13935.2)

GB/T19976; GB 8688; JIS L1096

FZ/T80007.1; FZ/T20019; FZ/T70006; FZ/T70007

ISO 13936-3, 13937-3, 13937-4, 1421, 2411, 2062, 4674-1, 5082, 9073.3, 9073.4, 9073.18

ASTM D5034; ASTM D5035; ASTM D2261; ASTM D5587; ASTM D4964; ASTM D3936; ASTM D1683, D 434, D751, D885 , D2256, D2724, D2731, D3787, D4034, D5733, D5735, etc.

BS 2543, 2576, 3320, 3424, 4303 , 4304,

M&S P11, P12, P13, P14

JIS L1096

Key Specifications

Model	M001-1	M001-2
Stroke Space	1100mm(exclude clamps)	900mm(exclude clamps)
Max. Capacity	500N 1000N 2500N 5000N 10000N
Test Method	CRE Principle (Constant Rate of Elongation)
Display Mode	Computer Display Mode
Sample clamp mode	Manual , pneumatic clamp
Effective collective frequency	1000 times/ second
Resolution of Force	1/100,000
Accuracy of Force	≤+/-0.2% F· S
Resolution of Stroke	0.001 mm
Test Speed Range	0.001-1000mm/min Digit speed control, error ≦+/- 1%
Gantry Structure Width	400mm
Stop Mode	Overload Stop, Emergency Stop Button, Specimen Damage Automatic Stop, Upper & Lower Limit Set Automatic Stop, Automatic Return Function
Protection measures	a. Beam’s upper and lower limit protective device b. Clamp defend touch protective device c. Displacement set up & load limit software protective device d. Sensor overload protection e. Sample load software protection f. Overcurrent & overvoltage protection g. Real time monitor for main parts.
Machine Drive	Servo Motor Drive, Synchronous Wheel and Precision Ball Screw Drive
Connection	Available to connect with pad, WIFI or cellphone to control instrument
Power Supply	AC 220V 50/60HZ 10A
Dimensions(WxDxH)	820x630x1800mm
Weight	120kg

Material to be Tested

M001 Universal tensile Machine is applicable for rubber, plastics, leather, metal, composites, nylon line, fabrics, paper, aviation, automotive, biomedical, elastomers, packaging, construction, petrifaction, aviation, petrifaction, electrician, vehicle, etc.

Universal Testing Machine M001

FAQ

Q1. Can we extract data to PC (without the need for an additional software) and we can print the results directly from the machine.
A1. Extract data to PC should be on basis of software. And the Simple test results can be printed out from machine. But the detailed test results including test curve should be printed out by software on computer.

Q2. Is the software is capable of showing real time progress of the test via a stress strain chart.
A2. Yes. The software is capable of showing real time progress of test via a stress strain chart.

Q3. Is An extensometer included in your quotation.
A3. Extensometer is optional accessory which depends on the specified materials tested.

Q4. I am looking for a machine which will test textile fabrics with a facility of checking the tensile strength, seam slippage and seam strength. I like to test ASTM D 434 and ASTM D 5034 .
A4. M002A with 2.5kg load cell will be right equipment for reference. ASTM D 434 and ASTM D 5034 are the regular tests for textiles quality control.

Q5. When we will select the test method it will automatically directs . Like that whether your machine is having the provision to perform the test .
A5. Yes, sure. This equipment is automatic configuration.
