Zipper Fatigue Tester M031A

This device is to test whether zipper can bear the specified times of reciprocating pull action, under the horizontal and vertical tension effect. During testing, machine drive the puller of zipper at constant speed, undergoes reciprocating movement of 30 times per minute until reaches specified test times. So as to assess the quality of zipper.

  • Item No.:

    M031A
  • Payment:

    TT, L/C, Wester Union
  • Product origin:

    China
  • Shipping port:

    China Port
  • Lead Time:

    10-15 days
  • Brand:

    UTSTESTER
  • Certificates:

    CE, ISO 17025
  • Partners:

    SGS, UL, etc
  • Standards:

    CNS-1083 QB/T2171   QB/T2172   QB/T2173 BS 3084 annex F, DIN 3419-1 SECTION 6.2.3.8, BS EN 16732 annex F.

New Products

Call Us Now

+86 15260605085

  • Product details

Overview

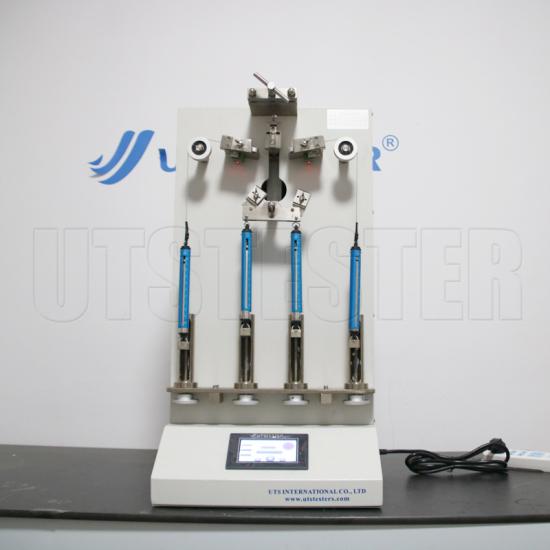

Zipper Fatigue Tester M031A

is to test whether zipper can bear the specified times of reciprocating pull action, under the horizontal and vertical tension effect. During testing, machine drive the puller of zipper at constant speed, undergoes reciprocating movement of 30 times per minute until reaches specified test times. So as to assess the quality of zipper.


Standards

CNS-1083, QB/T2171, QB/T2172, QB/T2173

BS 3084 annex F, BS EN 16732 annex F

DIN 3419-1 SECTION 6.2.3.8, etc

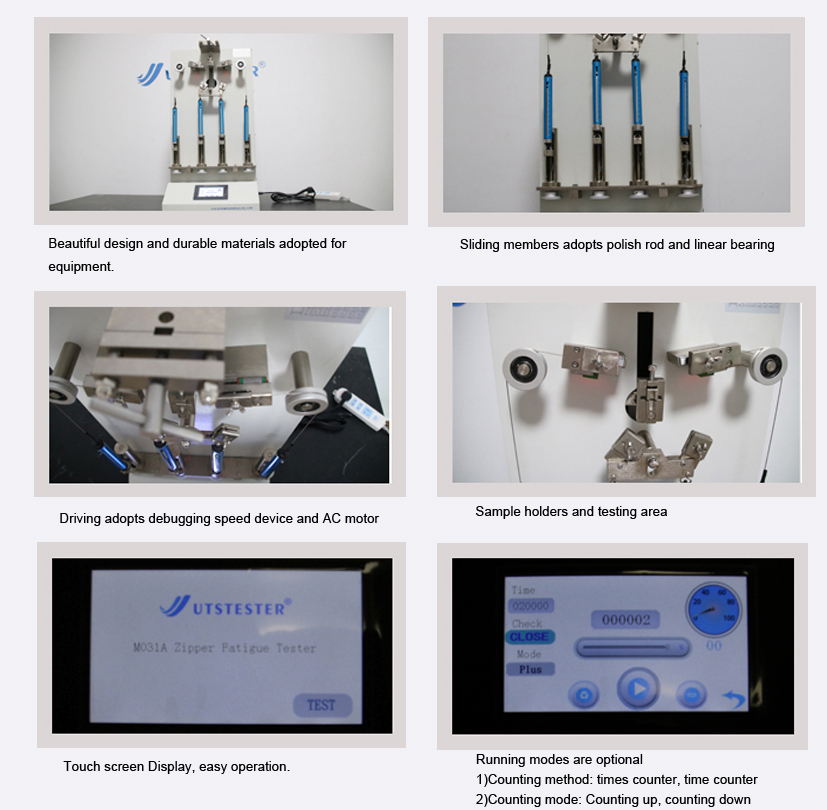

Features

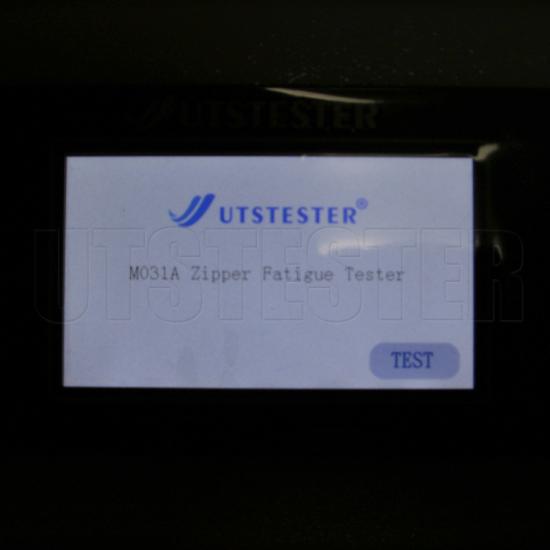

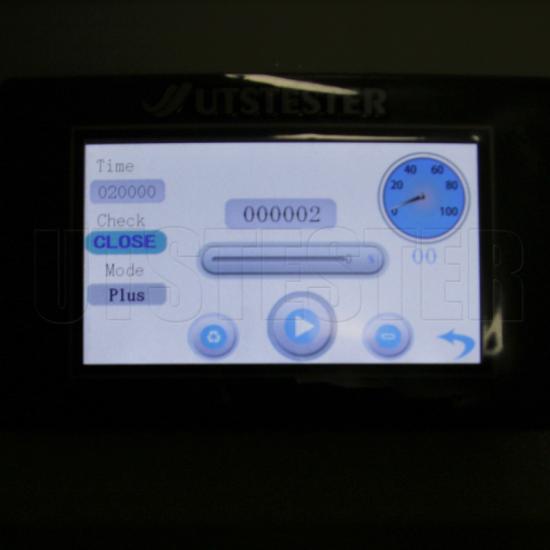

1. Touch screen Display, easy operation.

2. Adopts microprocessor with the function of auto inspecting left and right side of zipper

Running modes are optional

1) Counting method: times counter, time counter

2) Counting mode: Counting up, counting down

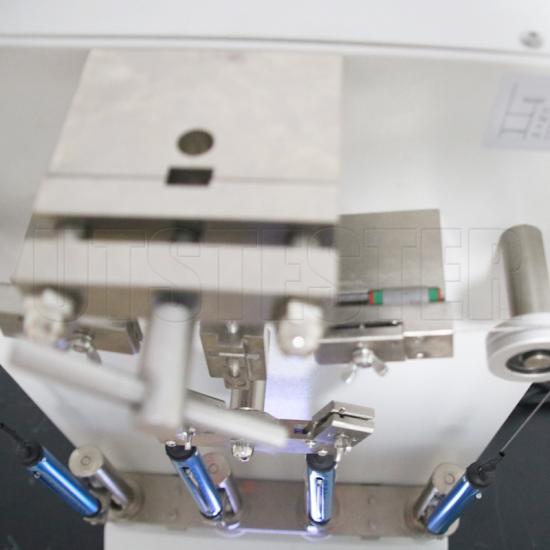

3. Sliding members adopts polish rod and linear bearing; Driving adopts debugging speed device and AC motor, to make whole machine to run stable and be low noise. Also available for adjusting speed.

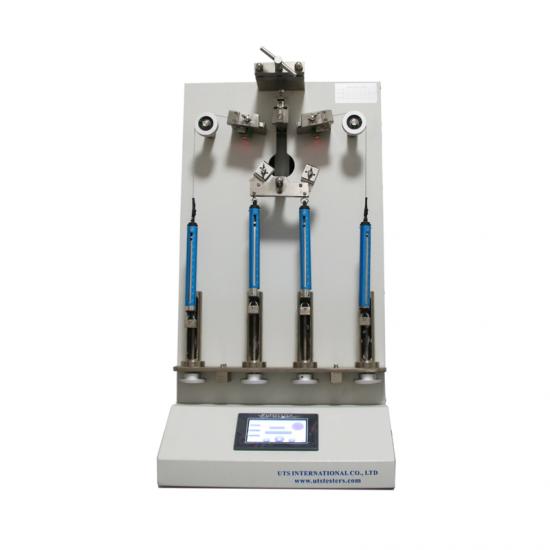

Zipper Fatigue Tester M031A


Key Specifications

Model

M031A

Reciprocating stroke

75mm

Horizontal fixture width

25mm

Vertical fixture total weight

0.28-0.34kg

Distance between horizontal and vertical fixture

6.35mm

Sample opening angle

60°

Sample closing angle

30°

Counter

0~999,999

Power Supply

AC 220V 50/60HZ 80W

Dimensions

280×550×660mm(L×W×H)

Weight

35kg

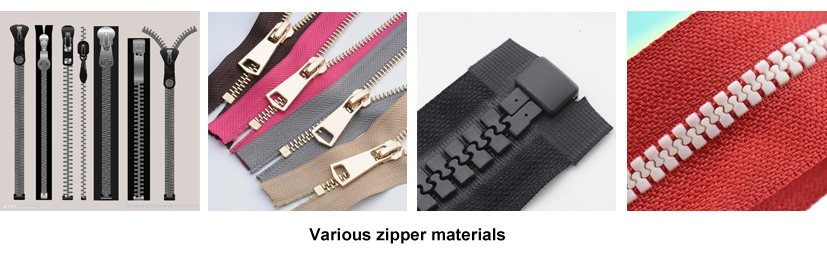

Material to be Tested

Zipper Fatigue Tester M031A
