To determine resistance to hot, cold, dry and moisture property for various material. Applicable for products quality management of electronic, electrical appliances, food, vehicles, metals, chemicals, building materials, etc.
Item No.:
E001-150LPayment:
TT, L/C, Wester UnionProduct origin:
ChinaShipping port:
China PortLead Time:
10-15 daysBrand:
UTSTESTERCertificates:
CE, ISO 17025Standards:
IEC 60068-2-1;Overview

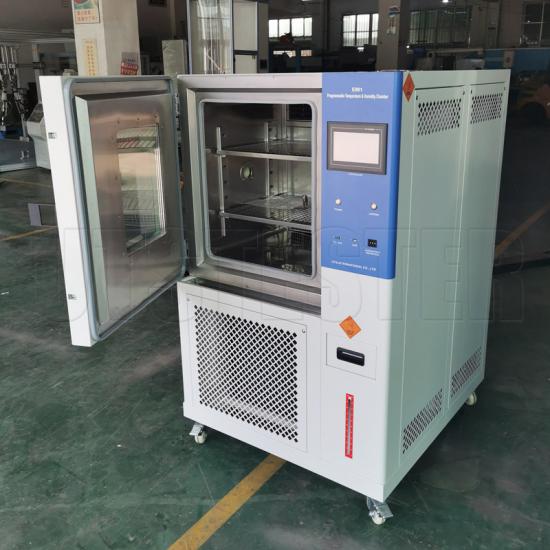

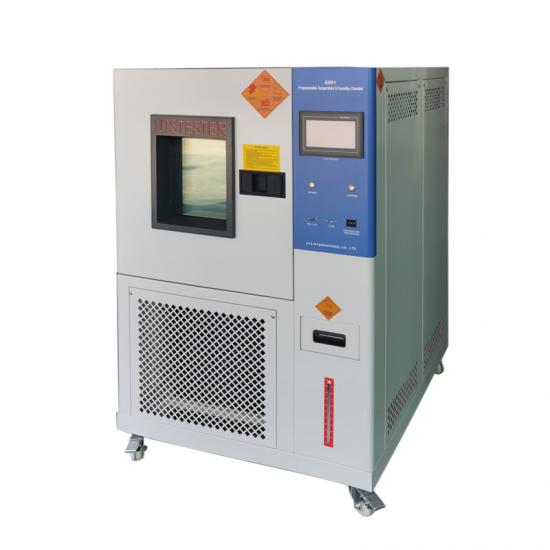

Programmable Temperature and Humidity Chamber, to determine resistance to hot, cold, dry and moisture property for various material. Applicable for products quality management of electronic, electrical appliances, food, vehicles, metals, chemicals, building materials, etc.
UTS temperature humidity chamber available to be programmed for different temperature and humidity.
Standards
IEC 60068-2-1; IEC 60068-2-38; IEC 60068-2-78; IEC 60068-2-30;
GB/T10589-1989; GB/T10586-1989; GB/T10592-1989; GB2423.3-93(IEC68-2-3)
MIL-STD 810D Method 502.2
GB/T2423.4-93(MIL-STD810)Method 507.2 Procedure 3
GJB150.9-8; GB2423.34-86, MIL-STD883C Method 1004.2
GB/T2423.1-1989 Test A: Low temperature test method GB/T2423.2-1989 Test B: High temperature test method |
Features
Optional Models
Model |
E001-80L |
E001-100L |
E001-150L |
E001-225L |
E001-408L |
E001-800L |
E001-1000L |
Inner box volume |
80L |
100L |
150L |
225L |
408L |
800L |
1000L |
Test chamber size (D*W*H) (cm) |
40×40×50 |
40×50×50 |
50×50×60 |
50×60×75 |
60×80×85 |
80×100×100 |
100×100×100 |
Weight(kg) |
180 |
200 |
250 |
300 |
550 |
960 |
1100 |
Key Specifications
Temperature |
|
The temperature range |
-20 ℃ ~ + 150 ℃ / -40℃ ~ + 150 ℃ / -70℃ ~ + 150 ℃ |
Temperature deviation |
≦ ± 2.0 ℃ |
Temperature fluctuations |
± 0.5 ℃ |
Temperature evenness |
≦ 2.0 ℃ |
cooling rate |
Heating rate: - 20 ℃ to + 100 ℃ about 35 min (At no-load state, environmental temperature + 25 ℃) Cooling rate: from + 20 ℃ to - 20 ℃ about 45 min (At no-load state, environmental temperature + 25 ℃) |
Humidity |
|
Humidity range |
20%R.H~98%R.H |
Humidity deviation |
±3.0%RH(>75%RH) ±5.0%RH(≤75%RH) |
Humidity uniformity |
±3.0%RH (No load) |
Humidity fluctuation |
±2.0%RH |
The temperature and humidity performance test is based on the relevant regulations of IEC 60068-3 standard.The sensor is placed at the outlet of the unit. |
Material to be Tested
