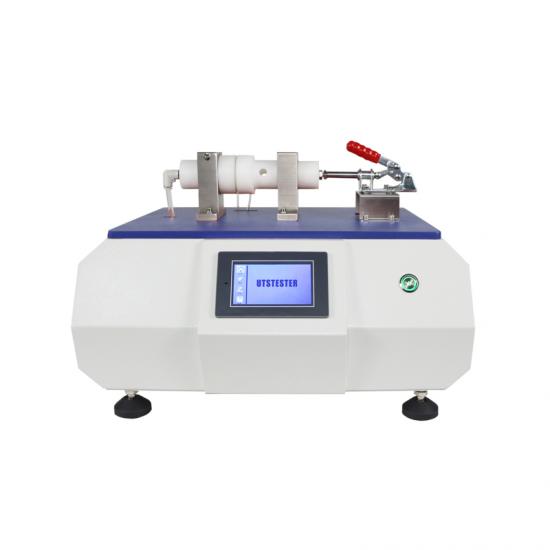

Mask Pressure Difference Tester MP04

MP04 Mask Pressure Difference Tester, Used to determine the pressure difference index of medical surgical masks under specified conditions.

  • Item No.:

    MP04
  • Payment:

    TT, L/C, Wester Union
  • Product origin:

    China
  • Shipping port:

    China Port
  • Lead Time:

    10-15 days
  • Brand:

    UTSTESTER
  • Certificates:

    CE, ISO 17025
  • Standards:

    EN 149, ASTM F2100, MIL-M-36954C,GB 19083, GB 2626, YY/T 0969, BS EN 14683 , etc

New Products

Call Us Now

+86 15260605085

  • Product details

Overview

Mask Pressure Difference Tester MP04, Used to determine the pressure difference index of medical surgical masks under specified conditions.


Standards

EN 149, ASTM F2100, MIL-M-36954C,GB 19083

GB 2626, YY/T 0969, BS EN 14683 , etc



Features

1. High-definition color touch screen.

2. Digital differential pressure meter with high precision.

3. high precision imported flow meter, high flow control accuracy.


Key Specifications

Model

MP04

Flowmeter range

0 ~ 10L/min, accuracy is 3%

Digital pressure difference meter range

0 ~ 2000Pa, accuracy: 1Pa

Pumping capacity of air pump

8L/min

Experimental area

4.9cm

Power source

AC 220V 50Hz

External dimension

450×500×370mm

Weight

25kg



Material to be Tested

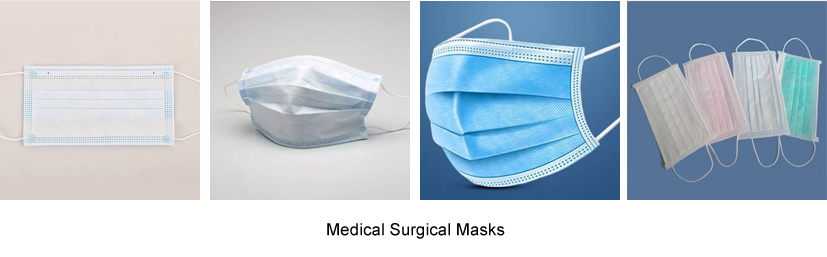

Mask Pressure Difference Tester MP04, is applicable for medical surgical masks.

Mask Pressure Difference Tester MP04
