Fabric Water Vapor Transmission Tester M029

To determine water vapor permeability (waterproofing and moisture-penetration performances) for various fabrics (including moisture permeable coated fabrics) and Non-woven fabric for garment usage including bat wool, space cotton, etc.

  • Item No.:

    M029
  • Payment:

    TT, L/C, Wester Union
  • Product origin:

    China
  • Shipping port:

    China Port
  • Lead Time:

    10-15 days
  • Brand:

    UTSTESTER
  • Certificates:

    CE, ISO 17025
  • Partners:

    SGS, UL, etc
  • Standards:

    GB/T12704      ASTM E96     JIS L1099      BS 7209 ISO 17699 ISO 15496
  • Product details

Overview

M029 Fabric Water Vapor Transmission Tester, To determine water vapor permeability (waterproofing and moisture-penetration performances) for various fabrics (including moisture permeable coated fabrics) and Non-woven fabric for garment usage including bat wool, space cotton, etc.


Standards

GB/T 12704    ASTM E96

JIS L1099       BS 7209

ISO 17699     ISO 15496

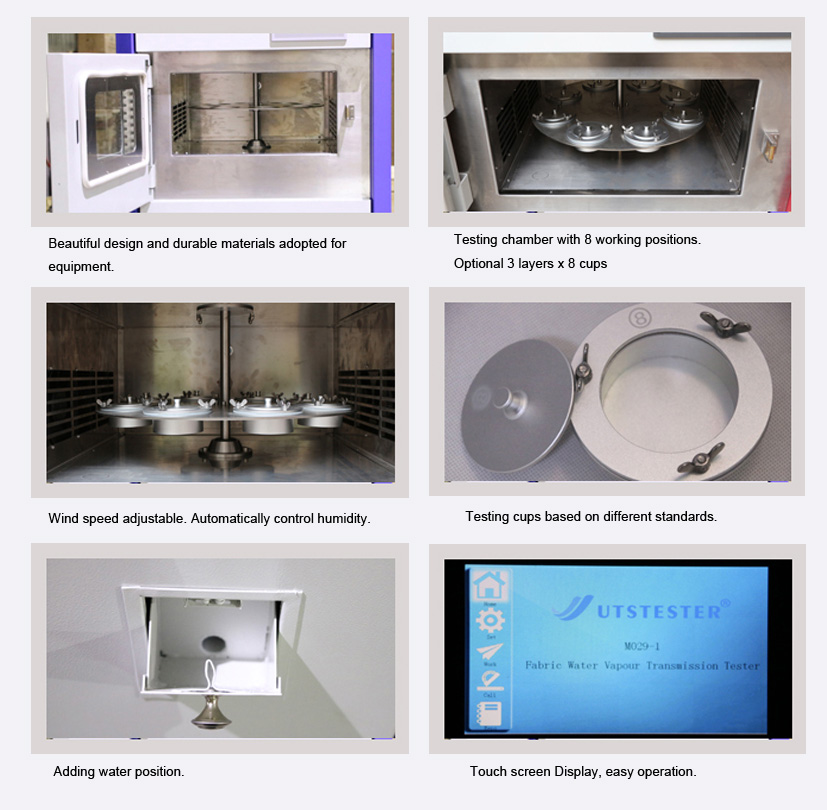

Features

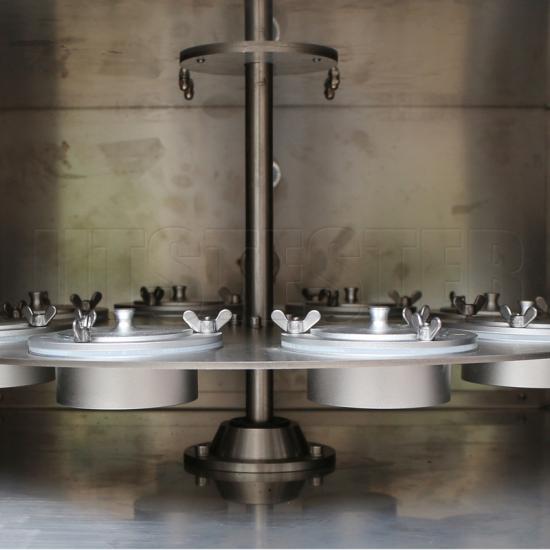

Wind speed adjustable.

Automatically control humidity.

Fabric Water Vapor Transmission Tester Equipped with high precision temperature and humidity sensor with advantage of stable and high accurate test data.

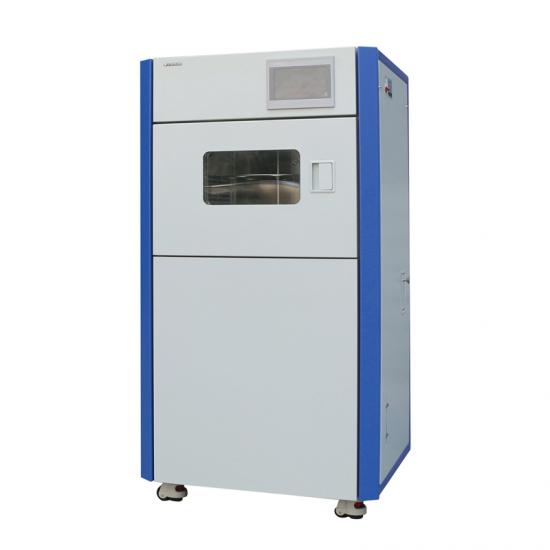

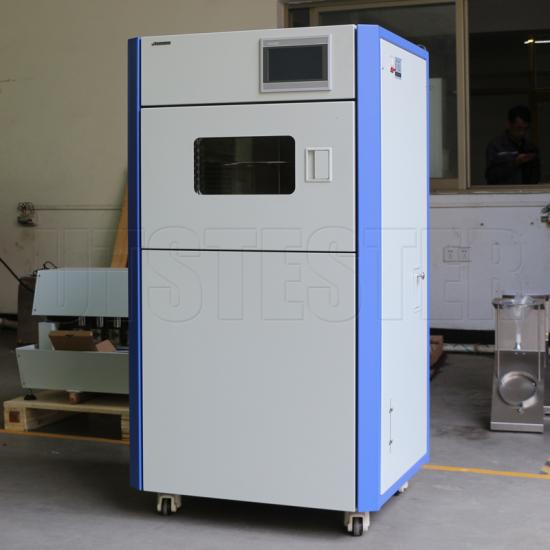

M029 Fabric Water Vapor Transmission Tester


Key Specifications

Model

M029-1

M029-3

Moisture permeance layer

1

3

Measuring glass

8pcs

8pcs x 3 layers

Temperature range & resolution

18~50℃; / 0.1℃

20 ~ 50; / ±1

Interior chamber air flow speed

0.1~0.8 m/s

0.3 ~ 0.8 m/s

Temperature accuracy

±5

Humidity range & resolution

40%RH ~ 95%RH±1%RH

Display

Color touch screen

Power supply

AC220V     50Hz     3500W

Dimension

74670×1185mm

1058 x 630 x 1600 mm

Weight

150kg

200kg



Material to be Tested

Water vapor permeability tester M029, is applicable for various fabrics (including moisture permeable coated fabrics) and Non-woven fabric for garment usage including bat wool, space cotton, etc.

Water vapor permeability tester M029


Demonstration Video



FAQ

Q1. What is Moisture vapor transmission rate (MVTR) / Water vapor transmission rate (WVTR)?

A1.Moisture vapor transmission rate (MVTR), also water vapor transmission rate (WVTR), is a measure of the passage of water vapor through a substance.



There are many industries where moisture control is critical. For example, in the garment/textile industry, MVTR as a measure of breathability has contributed to greater comfort for wearers of clothing for outdoor activity.



Q2. What is the water vapor permeability?

A2. That property of a material which permits the passage of water vapor through it; the time rate of water vapor transmission through a unit area of flat material of unit thickness induced by a unit vapor pressure difference between two specific surfaces, under specified temperature and humidity conditions.



Q3. How about water vapor transmission rate testing?

A3. There are various techniques to measure MVTR, ranging from gravimetric techniques that measure the gain or loss of moisture by mass, to highly sophisticated instrumental techniques that in some designs can measure extremely low transmission rates. Note that special care has to be taken in measuring porous substances such as fabrics as some techniques are not appropriate. Likewise for very low levels, many techniques would not have the resolution to provide a reliable result. Numerous standard methods are described in GB/T12704, ASTM E96, JIS L1099 Method A & B, BS 7209, ISO 17699, ISO 15496, etc.



Q4. Water vapor permeability tester recommended.

A4. UTS-M029 Fabric Water Vapor Transmission Tester is the equipment designed specially to perform various standards, including GB/T12704, ASTM E96, JIS L1099 Method A & B, BS 7209, ISO 17699, ISO 15496, so as test the Moisture vapor transmission rate (MVTR) / Water vapor transmission rate (WVTR).
